(55.013.AD) - ENGINE OIL, SENSOR, PRESSURE

Запчасти Case IH F4HE9687M J106 (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE (55) - ELECTRICAL SYSTEMS

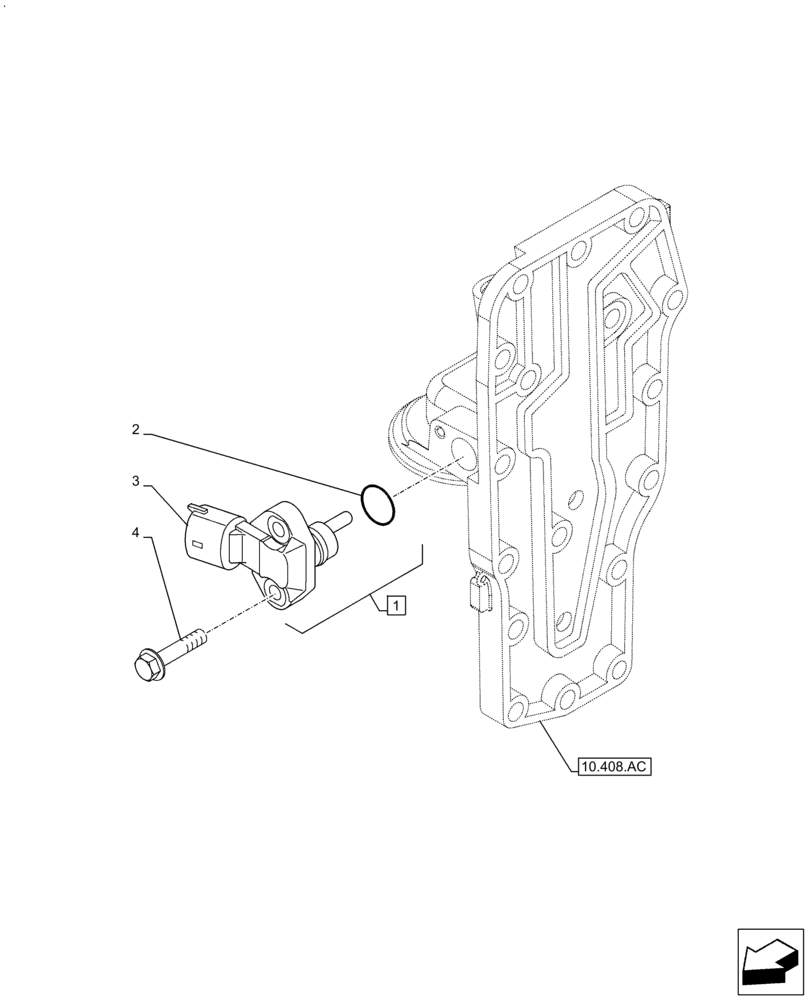

Схема запчастей Case IH F4HE9687M J106 - (55.013.AD) - ENGINE OIL, SENSOR, PRESSURE (55) - ELECTRICAL SYSTEMS
1
10.408.ac
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2859674

SENSOR,Oil Pressure

ASSY, Incl 2, 3

1шт.

2

4895477

O-RING,2.62mm Thk x 13.94mm ID

ID = 0.549 x 0.103

1шт.

3

2859675

SENSOR,Oil Temperature

Sensor, Incl in 1

1шт.

4

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

M6 x 1.0 x 20

2шт.
