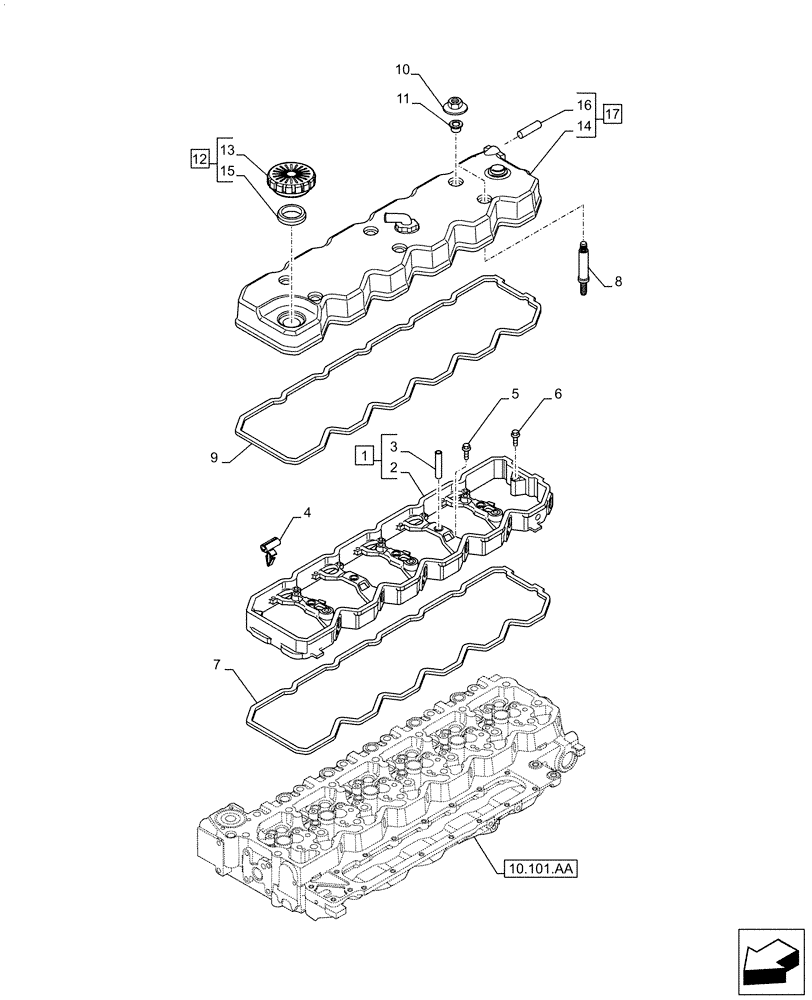

Запчасти Case IH F4HE9687M J106 (10.101.AB) - CYLINDER HEAD, COVER (10) - ENGINE

1

4899257

HOUSING

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

4

2852428

WIRE CLAMP,6mm ID

6шт.

5

4895432

SCREW,M8 x 1.25 x 70mm

5шт.

6

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

7

2853788

GASKET,10.35mm Thk

1шт.

8

2854375

STUD

Alternative

6шт.

8

4896991

BOLT

Alternative

6шт.

9

2853784

GASKET,10.5mm Thk

1шт.

10

504075125

FLANGE NUT

6шт.

11

504070041

GASKET

6шт.

12

2852773

CAP

ASSY, Incl 13, 15

1шт.

13

2852775

FILLER CAP,Male

Cap, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Cover, Incl in 17

1шт.

15

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

1шт.

16

1898283

1шт.

17

4899185

COVER

ASSY, Incl 14, 16

1шт.
