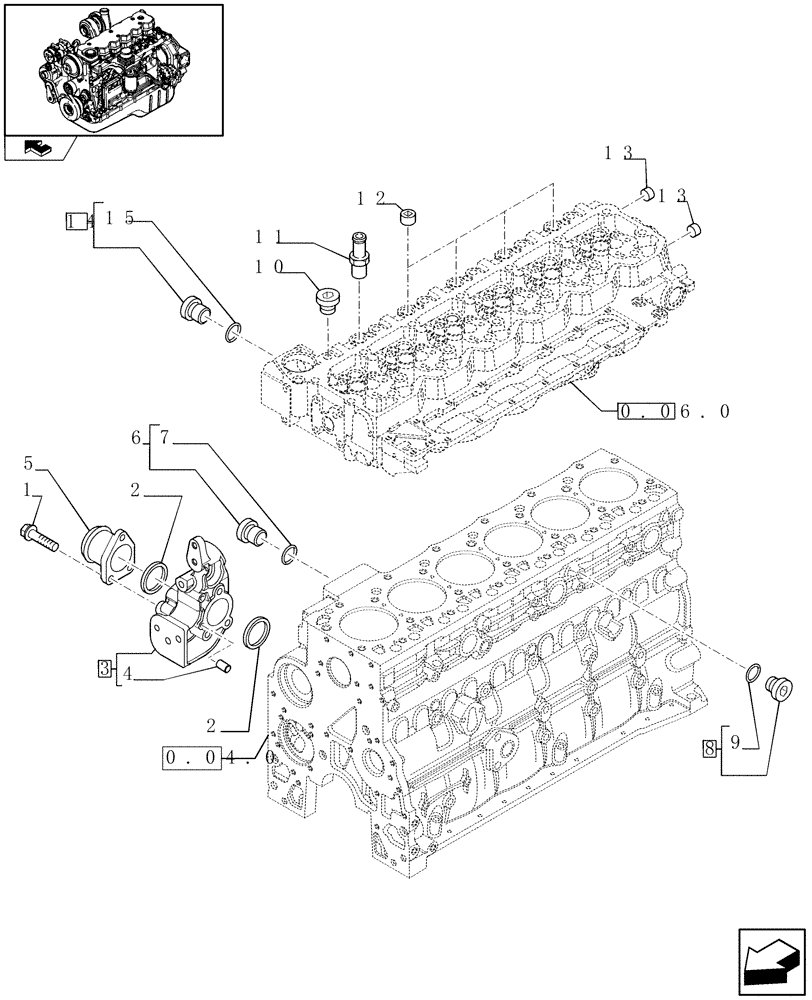

Запчасти Case IH F4HE9687M J100 (0.32.3) - PIPING - ENGINE COOLING SYSTEM (2852921-2856257-2856183-2854490-2855824)

1

2852923

SCREW

M10X80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

- ASSY

1шт.

4

4895576

DOWEL

2шт.

5

2852922

ELBOW

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy

3шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

3шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

1шт.

11

4896924

HYD CONNECTOR

1шт.

12

4895078

PIPE PLUG,1/2"-14

- Assy

3шт.

13

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

- Assy

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
