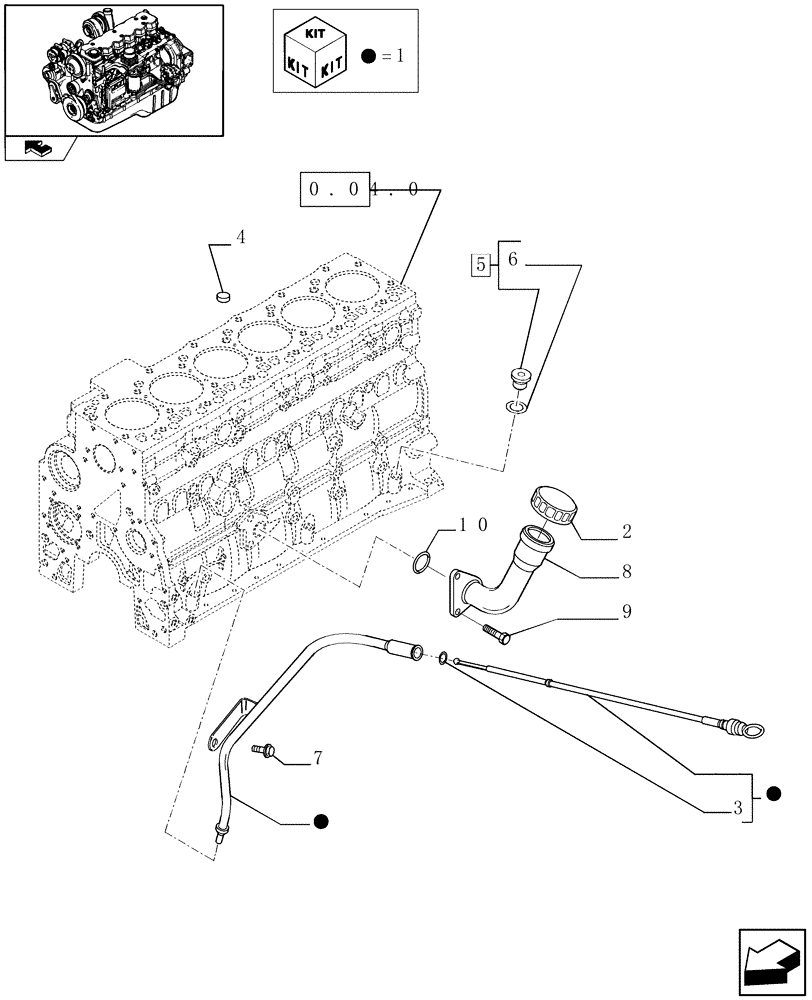

Запчасти Case IH F4HE9687M J100 (0.27.0) - ENGINE OIL DIPSTICK (2856389 - 2852376)

1

2856390

DIPSTICK

- OIL LEVEL

1шт.

2

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

3

4898502

O-RING,0.364" ID x 0.504" OD x 0.07"

1шт.

4

4895406

EXPANSION PLUG,9.8mm OD

3шт.

5

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy

1шт.

6

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

7

2855440

SCREW

M1X16mm

1шт.

8

2852377

NECK FILLER

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

10

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.
