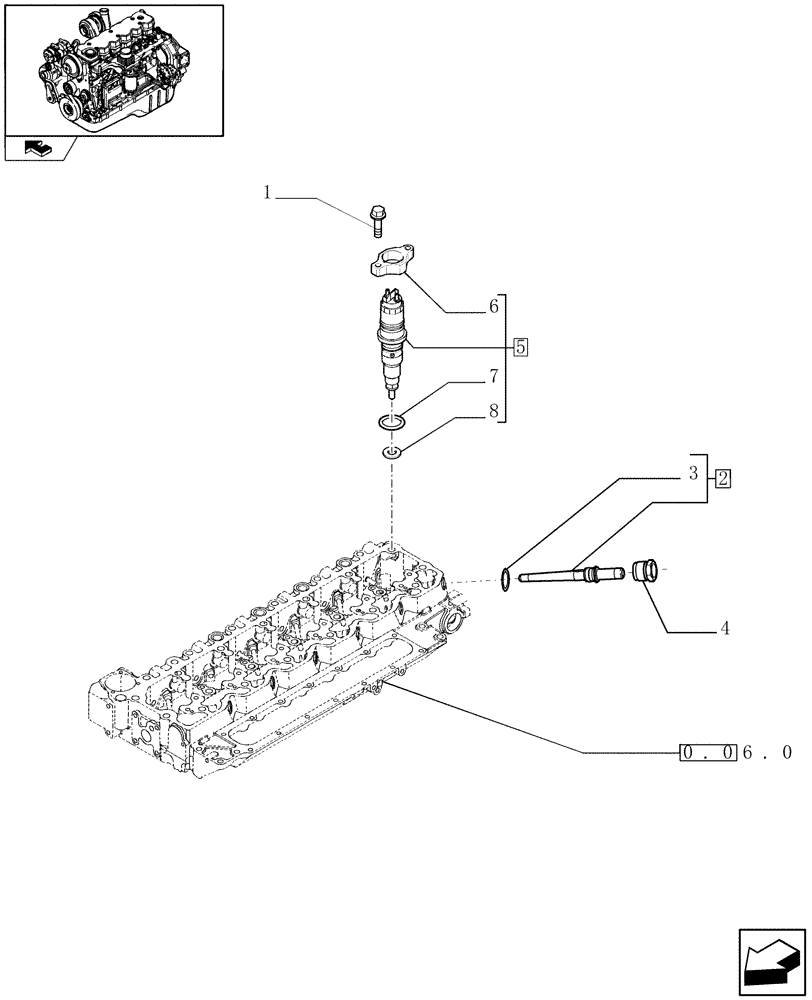

Запчасти Case IH F4HE9687M J100 (0.14.0[02]) - INJECTION EQUIPMENT - INJECTOR (2854913)

1

4895483

BOLT,Flng, M6 x 1 x 35mm

12шт.

2

2854606

FUEL TUBE,Connector Assembly

- ASSY

6шт.

3

4890929

O-RING,3mm Thk x 11mm ID

1шт.

4

4893739

TUBE NUT,Hex, M22 x 1.5

6шт.

5

2854608

FUEL SYSTEM INJECTOR

ASSY

6шт.

5

2854608R

REMAN-FUEL INJECTOR

Injector Nozzle

6шт.

5

2854608C

CORE-FUEL INJECTOR

Return number

6шт.

6

2854609

BRACKET

1шт.

7

4890926

O-RING,3mm Thk x 20.9mm ID, 60 Duro

1шт.

8

4899689

SEALING WASHER,7mm ID x 15mm OD x 1.5mm Thk

1шт.
