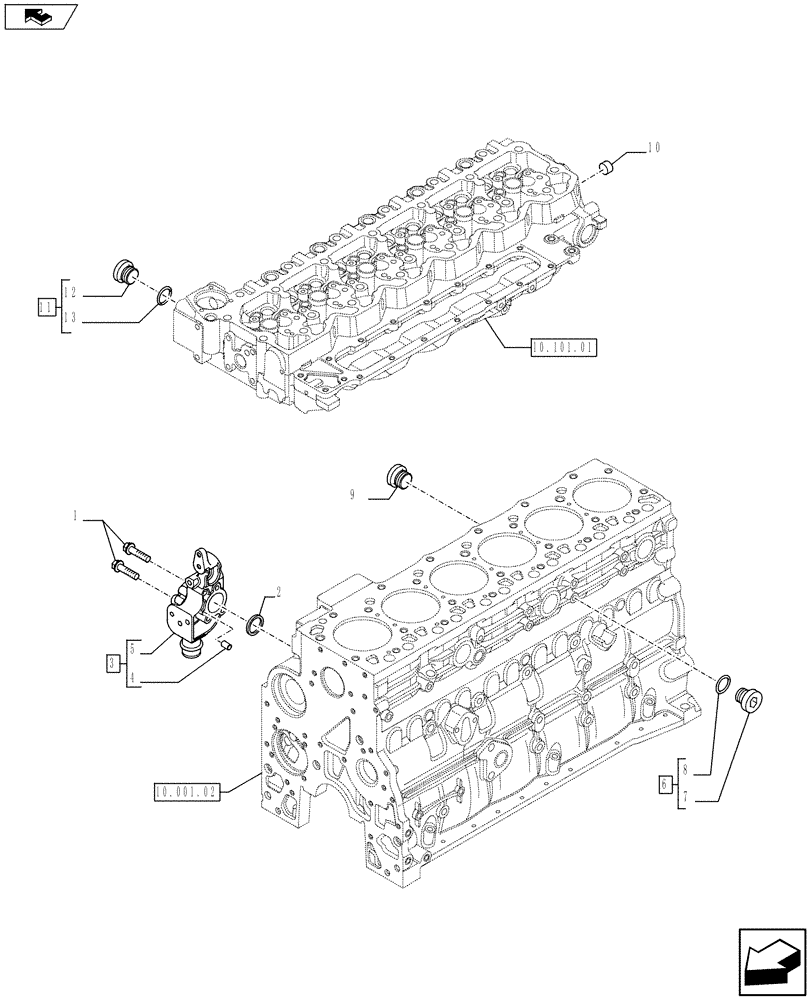

Запчасти Case IH F4HE9687L J100 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (2856257-2855824-2854937) (10) - ENGINE

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

1

2852283

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

4892347

SUPPORT

ASSY

1шт.

4

98405182

DOWEL

2шт.

5

4892348

1шт.

6

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

7

4895624

PLUG,M16 x 1.5 x 18mm L

1шт.

8

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

9

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

10

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

11

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

12

4895081

PLUG,M22 x 1.5 x 16.5mm L

1шт.

13

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
