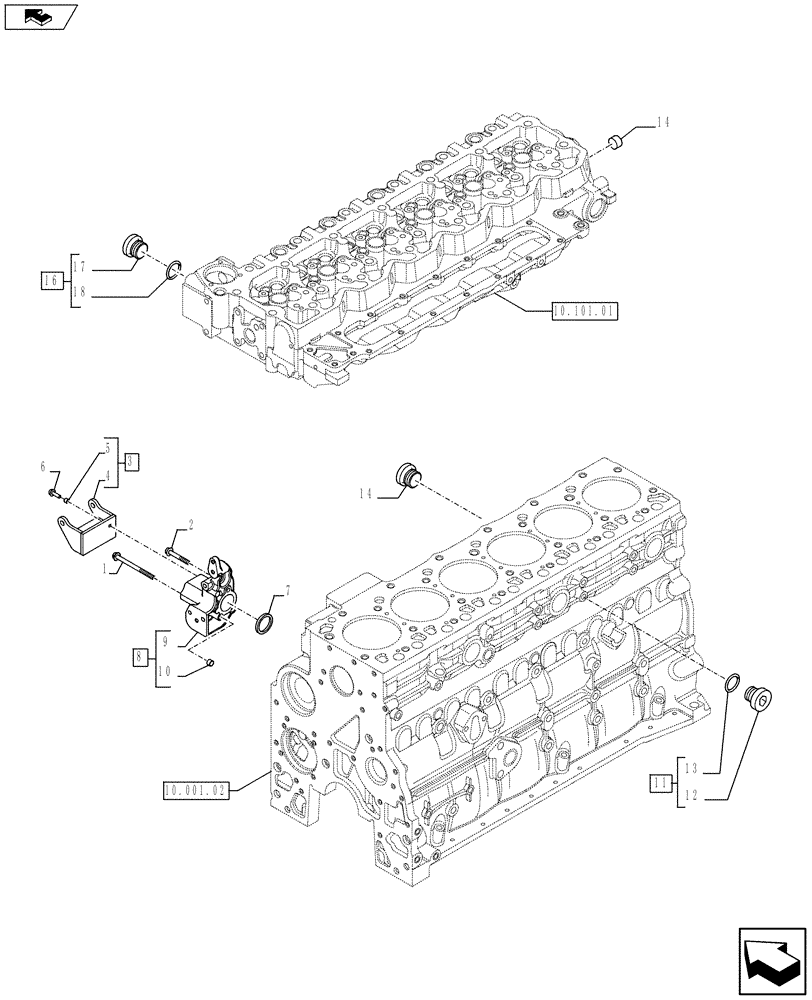

Запчасти Case IH F4HE9687G J104 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (2856257 - 2855824 - 2855565) (10) - ENGINE

1

2855566

SCREW

2шт.

2

16592824

BOLT,M10 x 1.5 x 70mm

1шт.

3

2855575

BRACKET

ASSY

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

6

16586424

SCREW,M8 x 25mm

2шт.

7

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

8

2855443

FITTING

ASSY

1шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

98405182

DOWEL

2шт.

11

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

12

4895624

PLUG,M16 x 1.5 x 18mm L

1шт.

13

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

14

4895392

HEX SOCKET PLUG,M18 x 1.5

1шт.

15

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

16

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

17

4895081

PLUG,M22 x 1.5 x 16.5mm L

1шт.

18

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
