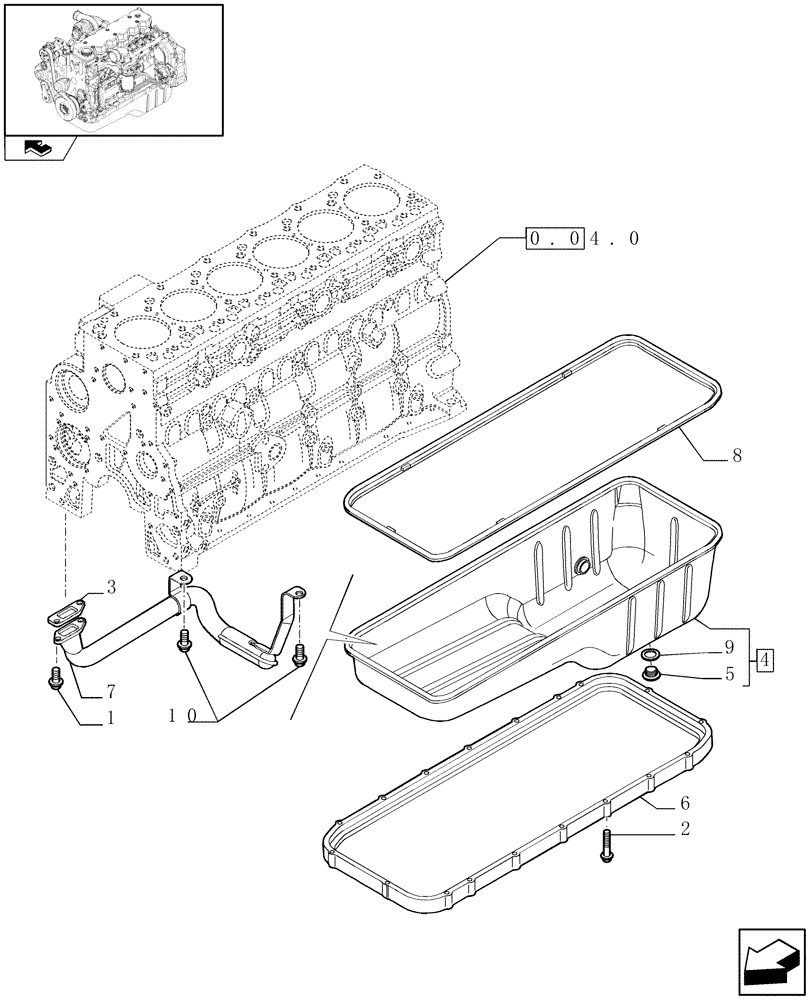

Запчасти Case IH F4HE9687G J101 (0.04.2) - ENGINE OIL SUMP (2853310)

1

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

4898036

ENGINE OIL PAN

- ASSY

1шт.

5

4895577

PLUG

2шт.

6

4897858

SPACER

1шт.

7

2853306

SUCTION PIPE

1шт.

8

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

9

2830546

SEALING WASHER

2шт.

10

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

2шт.
