(10.304.01[02]) - OIL PUMP - ENGINE (504099881)

Запчасти Case IH F4HE9687G J100 (10.304.01[02]) - OIL PUMP - ENGINE (504099881) (01) - ENGINE

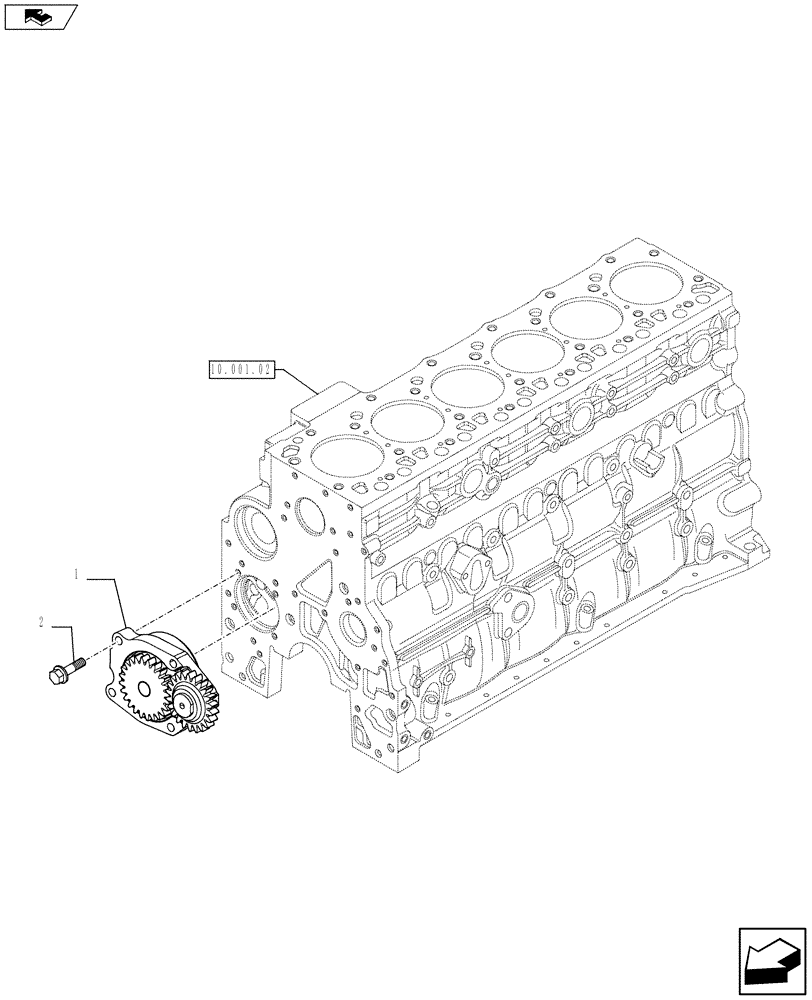

Схема запчастей Case IH F4HE9687G J100 - (10.304.01[02]) - OIL PUMP - ENGINE (504099881) (01) - ENGINE
10.001.02
2
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897481

ENGINE OIL PUMP

1шт.

1

2853591

ENGINE OIL PUMP

Alternative

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.
