(10.304.01[02]) - OIL PUMP - ENGINE (2853590)

Запчасти Case IH F4HE9687F J100 (10.304.01[02]) - OIL PUMP - ENGINE (2853590) (10) - ENGINE

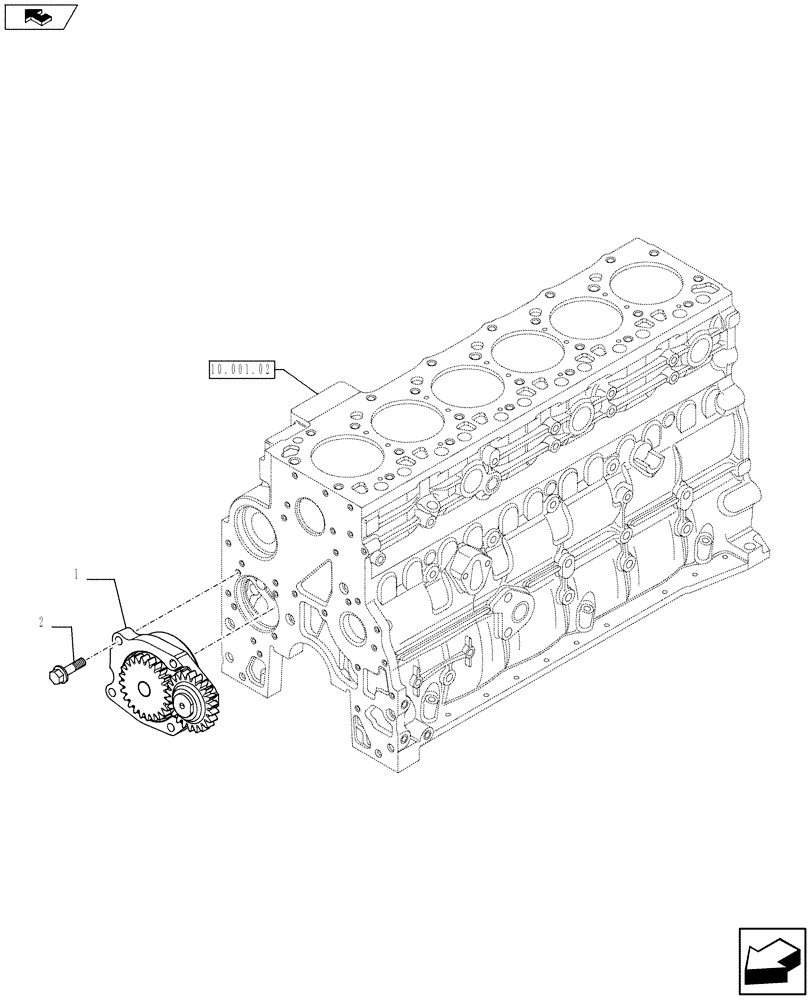

Схема запчастей Case IH F4HE9687F J100 - (10.304.01[02]) - OIL PUMP - ENGINE (2853590) (10) - ENGINE
1
home
10.001.02
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897481

ENGINE OIL PUMP

1шт.

1

4897481R

REMAN-ENG OIL PUMP

F4HE9687F*J100 ENGINE 504335002 - 87744024

1шт.

1

4897481C

CORE-ENGINE OIL PUMP

Return number

1шт.

1

2853591

ENGINE OIL PUMP

Alternative

1шт.

1

4897481R

REMAN-ENG OIL PUMP

F4HE9687F*J100 - ENGINE 504335002 - 87744024, Reman for new P/N 2853591

1шт.

1

4897481C

CORE-ENGINE OIL PUMP

Return number

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.
