(10.105.02) - CONNECTING ROD (2854455)

Запчасти Case IH F4HE9687F J100 (10.105.02) - CONNECTING ROD (2854455) (10) - ENGINE

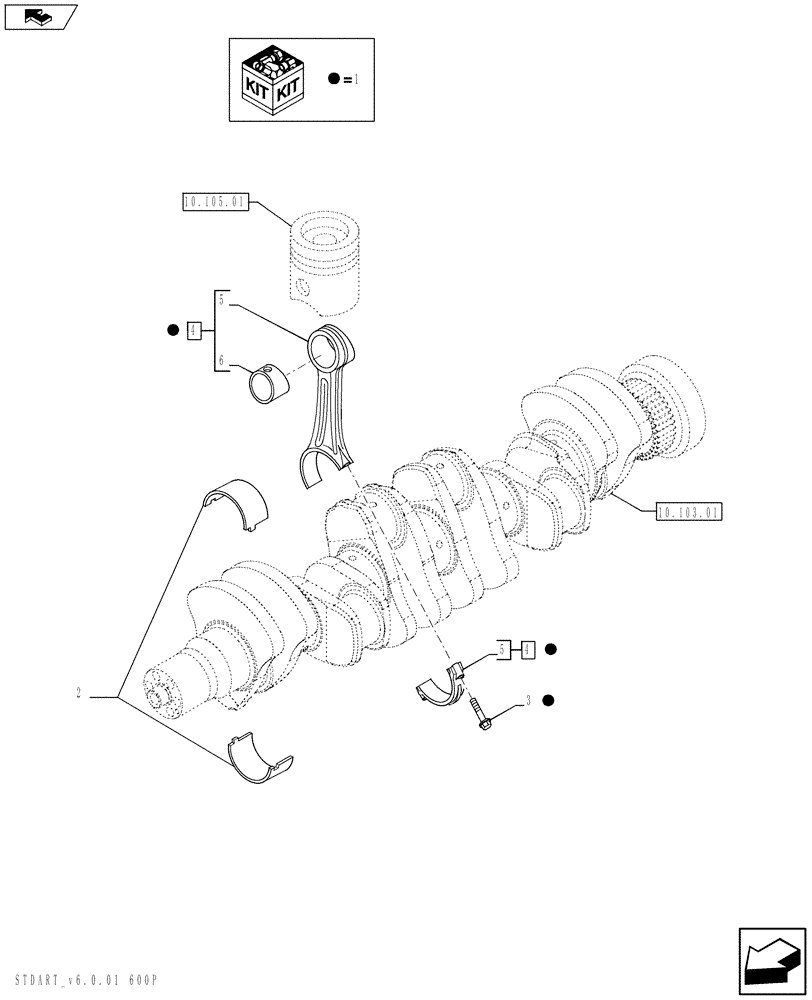

Схема запчастей Case IH F4HE9687F J100 - (10.105.02) - CONNECTING ROD (2854455) (10) - ENGINE
home
10.103.01
1
4
1
6
1
10.105.01
1
stdart_v6.0.01 600p
5
4
1
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

6шт.

2831298R

REMAN-CONNECTING ROD

F4HE9687F*J100 ENGINE 504335002 - 87744024

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892714

BEARING LINER

BEARING, CON. ROD

6шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4895747

CONNECTING ROD

ASSY

1шт.

2831298R

REMAN-CONNECTING ROD

F4HE9687F*J100 ENGINE 504335002 - 87744024 Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

5

4895746

1шт.

6

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.
