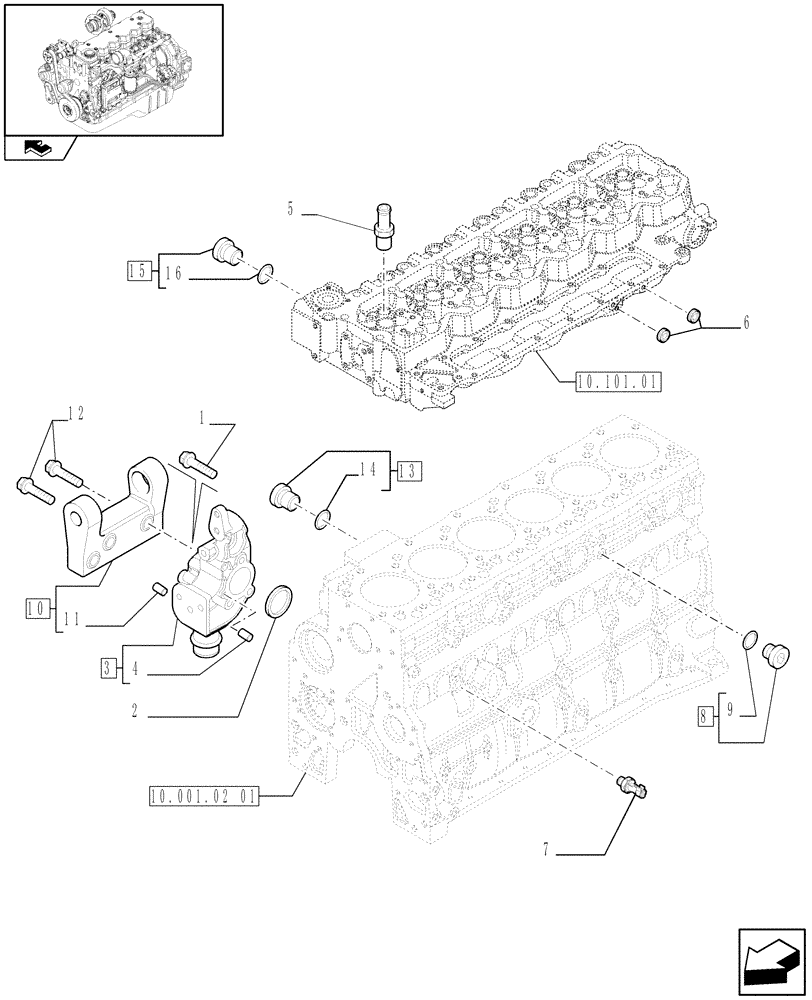

Запчасти Case IH F4HE9684J J100 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (2855619 - 2856257 - 2855445 - 2855824 - 4891480)

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

2шт.

1

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

M10 x 70

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2855443

FITTING

ASSY

1шт.

4

4895576

DOWEL

2шт.

5

4895078

PIPE PLUG,1/2"-14

4шт.

6

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

7

4895118

FITTING

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

2855462

BRACKET

ASSY

1шт.

11

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

12

2852295

SCREW,Hex, M8 x 1.25 x 40mm

M8 x 1,25 x 40

3шт.

13

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

1шт.

14

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

15

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

16

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
