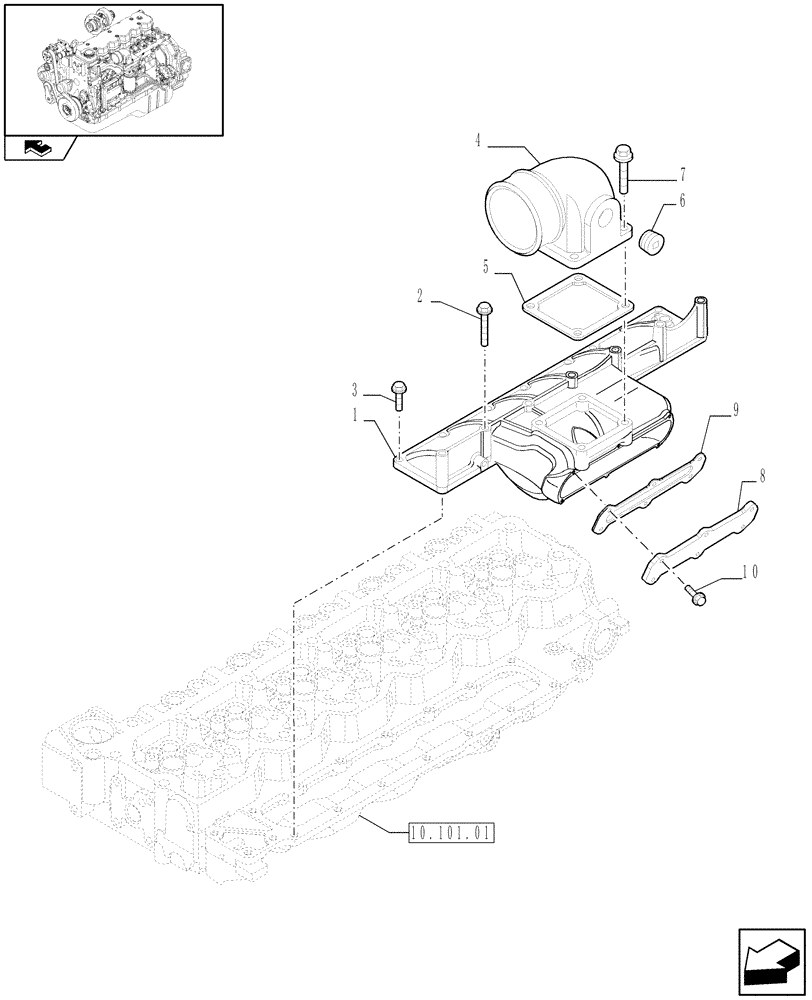

Запчасти Case IH F4HE9684D J103 (10.254.01) - MANIFOLD - INTAKE (2854533 - 2854979 - 2854699)

1

2854534

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

3шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

7шт.

4

4895424

INLET MANIFOLD

1шт.

5

4899921

GASKET,1.2mm Thk

1шт.

6

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

7

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

4шт.

8

2854700

COVER

1шт.

9

2854701

GASKET,0.8mm Thk

1шт.

10

2854702

SCREW,Hex Flg, M6 x 20mm

M6 x 20

6шт.
