Запчасти Case IH F4HE9684D J102 (0.06.0[01]) - CYLINDER HEAD (504115961)

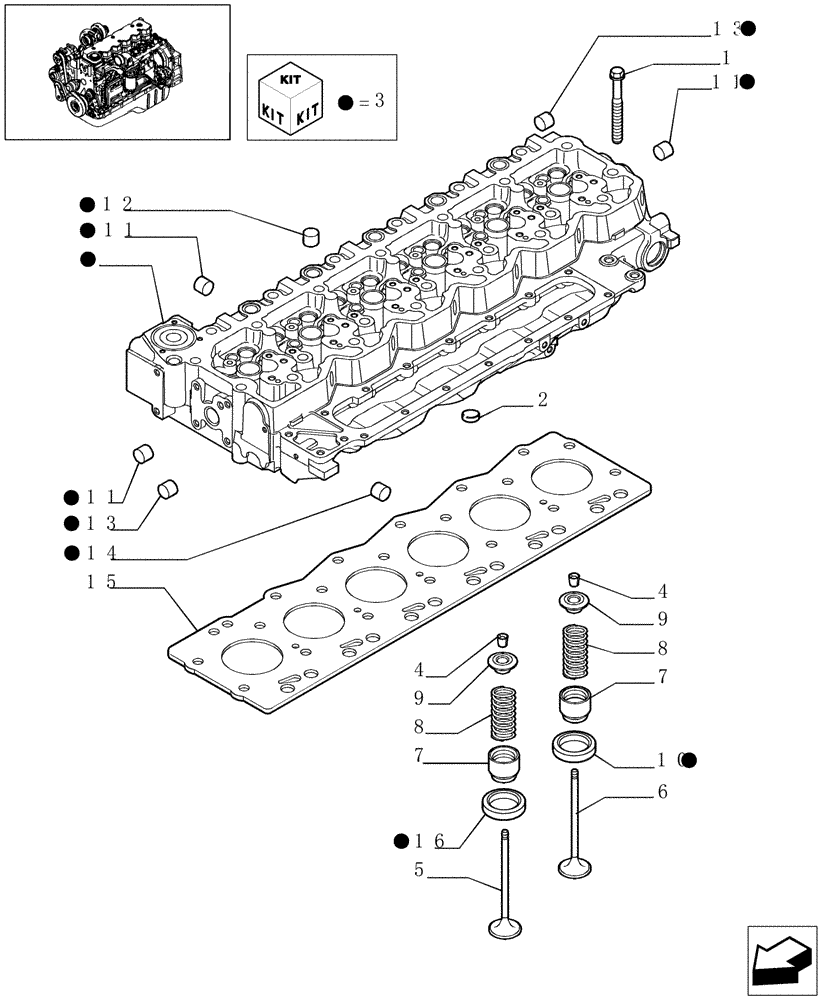

Схема запчастей Case IH F4HE9684D J102 - (0.06.0[01]) - CYLINDER HEAD (504115961)
1
1
7
4
4
8
9
2
12
11
1
15
14
10
7
1
6
16
1
1
13
1
1
9
1
1
11
5
11
13
1
3
8

Артикул

Название

Примечание

Количество

1

4891024

BOLT,Flng, M12 x 1.75 x 130mm

M12X130

12шт.

1

4891025

SCREW,Flng, M12 x 1.75 x 150mm

M12X150

14шт.

2

4893036

PIPE PLUG,3/4"-14 NPTF

1шт.

3

2831279

CYLINDER HEAD,6 Cylinders

- ASSY

1шт.

87536188

CYLINDER HEAD

- ASSY, Ref. 3,4,5,6,7,8,9

1шт.

87536188R

REMAN-CYLINDER HEAD

F4HE9684D*J102 (1/06)

1шт.

87536188C

CORE-CYLINDER HEAD

Return Number

1шт.

4

4899081

ROCKER ARM COTTER

48шт.

5

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

6

4895052

STD INLET VALVE

STD ENGINE INLET VALVE

12шт.

7

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

24шт.

8

4895073

VALVE SPRING

24шт.

9

4895074

CUP,18mm ID

24шт.

10

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

11

4895085

EXPANSION PLUG,25.74mm

OD

13шт.

11

4895408

PLUG,0.511" L

.511" OD

2шт.

12

4895089

PLUG,0.886" L

.886" OD

11шт.

13

4895406

EXPANSION PLUG,9.8mm OD

- Intake

7шт.

14

4895407

EXPANSION PLUG,38.28mm OD

- Exhaust, 38.28mm OD

2шт.

15

2830705

CYLINDER HEAD GASKET,1.15mm Thk

SP=1.25

1шт.

15

2830704

CYLINDER HEAD GASKET,1.25mm Thk

SP=1.15

1шт.

16

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

12шт.

Выбрано товаров: 22
