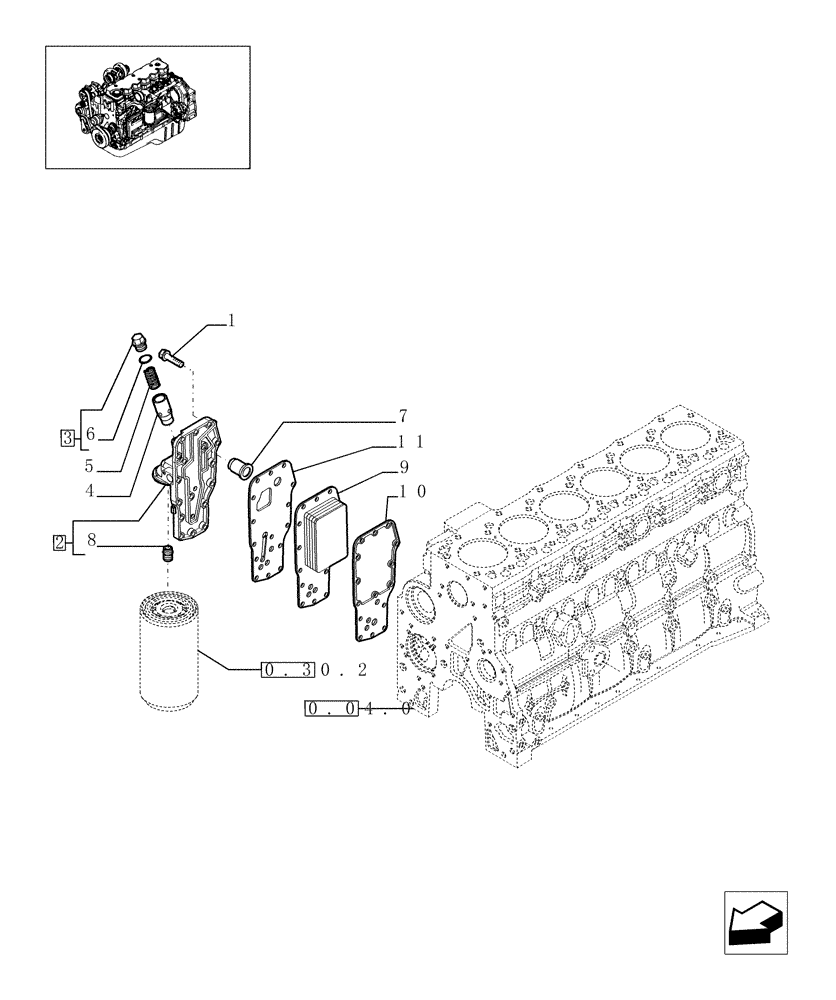

Запчасти Case IH F4HE9684D J102 (0.31.5[01]) - HEAT EXCHANGER - ENGINE (504096820)

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2

4899566

FILTER HEAD

- ASSY

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

- ASSY

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

17916280

SEAL

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

2853604

OIL COOLER

1шт.

9

4896407

OIL COOLER

1шт.

10

2830559

GASKET,0.5mm Thk

1шт.

11

4896409

GASKET,1.55mm Thk

1шт.
