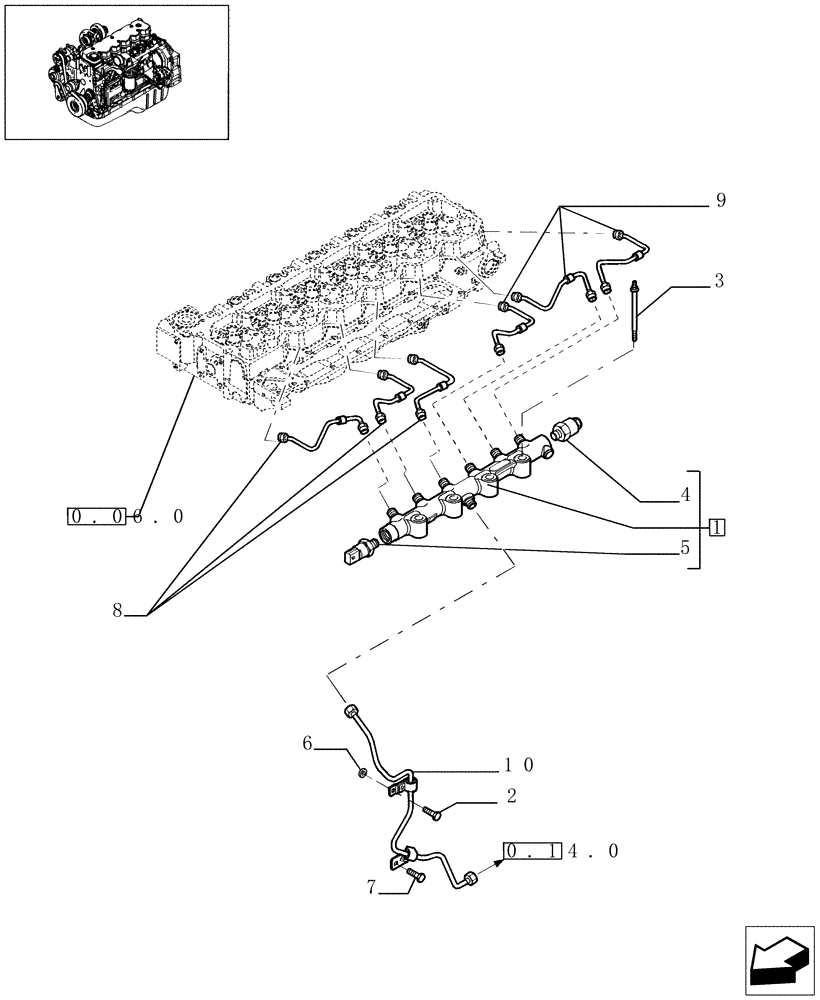

Запчасти Case IH F4HE9684D J101 (0.14.9[01]) - INJECTION EQUIPMENT - PIPING (504103212)

1

2854540

MANIFOLD

- ASSY

1шт.

2

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

3

2853537

BOLT,Hex Flange Head Cap M8 x 1.25 x 125mm

4шт.

4

2854543

VALVE PRESSURE RELIE

1шт.

5

2854542

SENSOR,FUEL PRESSURE TO THE MANIFOLD

1шт.

6

2852434

SPACER

1шт.

7

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

1шт.

8

2854549

INJECTION PIPE

3шт.

9

2852784

PIPE

3шт.

10

2854552

INJECTION PIPE

1шт.
