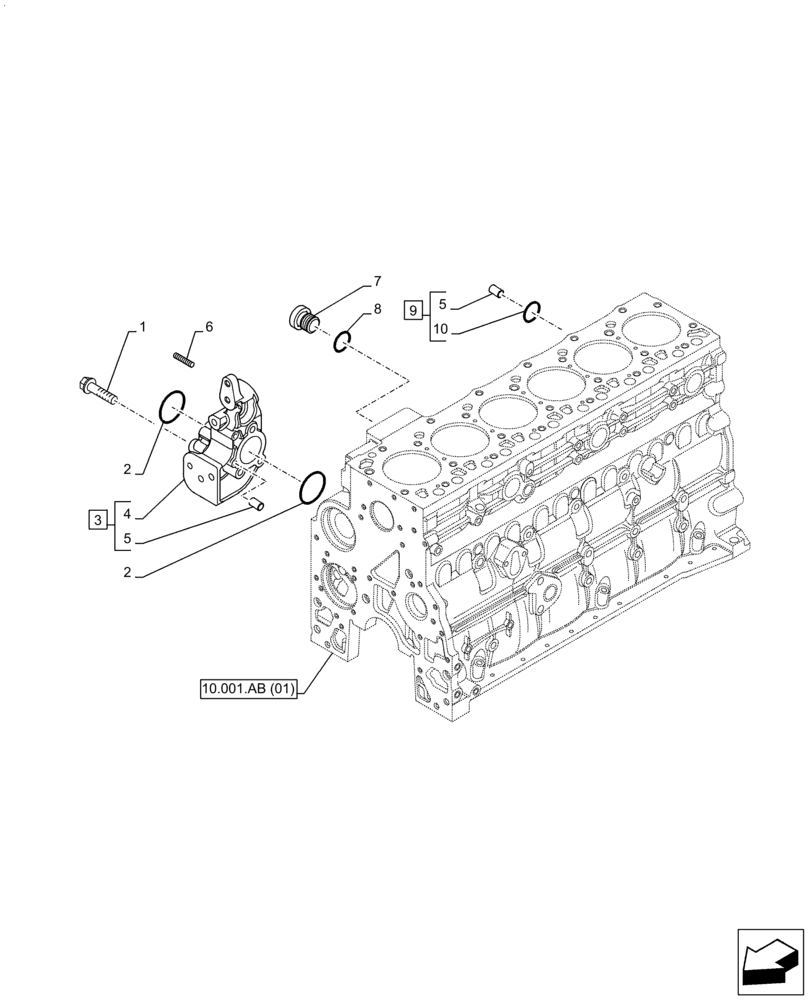

Запчасти Case IH F4HE96841 J102 (10.400.AE) - WATER PUMP, INLET MANIFOLD, 4088 (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

2шт.

1

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2855443

FITTING

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

5

98405182

DOWEL

3шт.

6

16748734

SCREW

3шт.

7

4895394

HEX SOCKET PLUG,M18 x 1.5

2шт.

8

4895393

O-RING,2.2mm Thk x 15.3mm ID

2шт.

9

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl 5, 10

1шт.

10

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.
