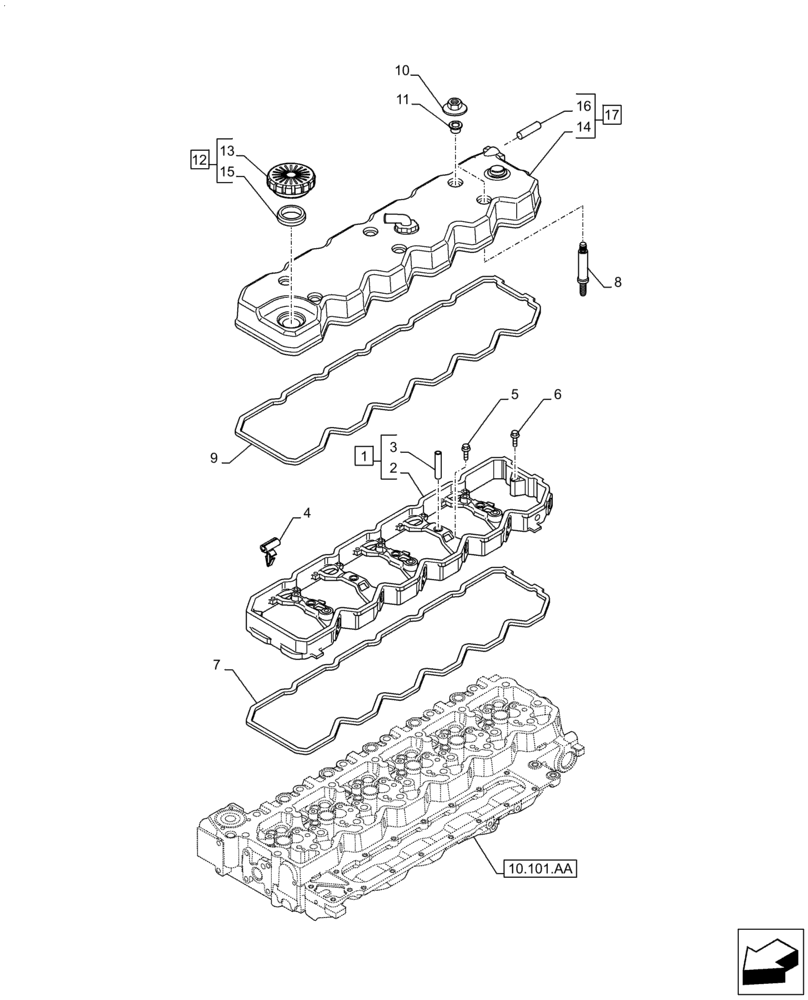

Запчасти Case IH F4HE96841 J102 (10.101.AB) - CYLINDER HEAD, COVER, 4088 (10) - ENGINE

1

4899257

HOUSING

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

4

2852428

WIRE CLAMP,6mm ID

6шт.

5

4895432

SCREW,M8 x 1.25 x 70mm

5шт.

6

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

2шт.

7

2853788

GASKET,10.35mm Thk

1шт.

8

2854375

STUD

6шт.

9

2853784

GASKET,10.5mm Thk

1шт.

10

4893936

FLANGE NUT,Hex, M13, RH Thd, Cl 9.8

6шт.

11

4899239

ISOLATOR,29mm OD x 13mm L

6шт.

12

2856707

FILLER CAP

1шт.

13

NSS

NOT SOLD SEPARAT

Cap, Incl in 12

1шт.

14

NSS

NOT SOLD SEPARAT

Incl in 17

1шт.

15

2852774

GASKET,38mm ID x 51mm OD x 8mm Thk

1шт.

16

4898283

PLUG,Female

1шт.

17

4899185

COVER

ASSY, Incl 14, 16

1шт.
