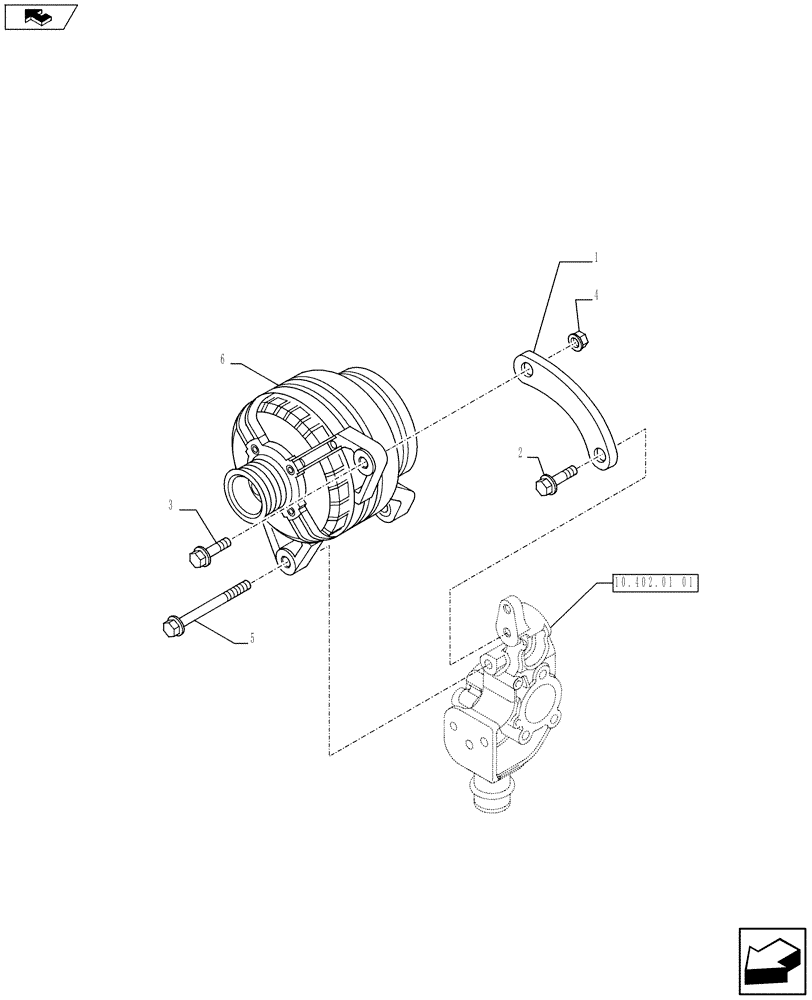

Запчасти Case IH F4HE9484M J100 (55.301.02) - ALTERNATOR (2859581-2855913) (55) - ELECTRICAL SYSTEMS

1

2859582

BRACKET, SUPPORTING

1шт.

2

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

1шт.

4

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

M10 x 1.5

1шт.

5

4899122

BOLT,Flng, M10 x 1.5 x 110mm

1шт.

6

2855914

ALTERNATOR

ASSY

1шт.
