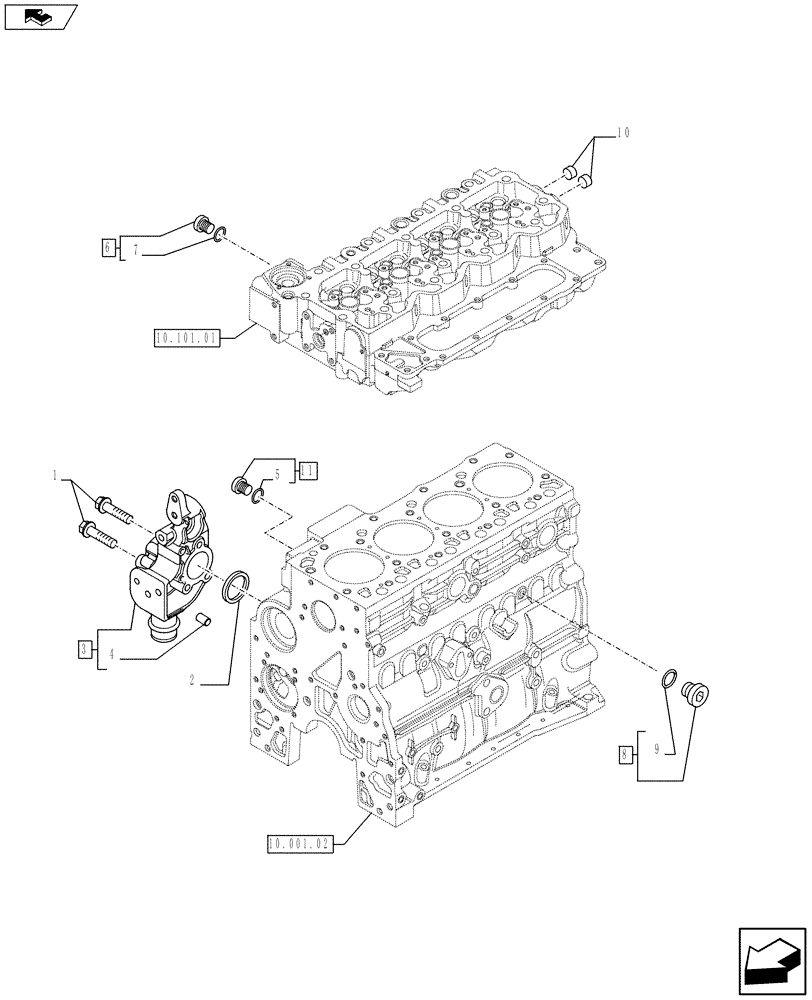

Запчасти Case IH F4HE9484M J100 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (2856257-2855824-2854937) (10) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

2шт.

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2854938

FITTING

ASSY

1шт.

4

4895576

DOWEL

2шт.

5

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

6

4895080

HEX SOCKET PLUG,M22 x 1.5

ASSY

1шт.

7

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

11

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY

1шт.
