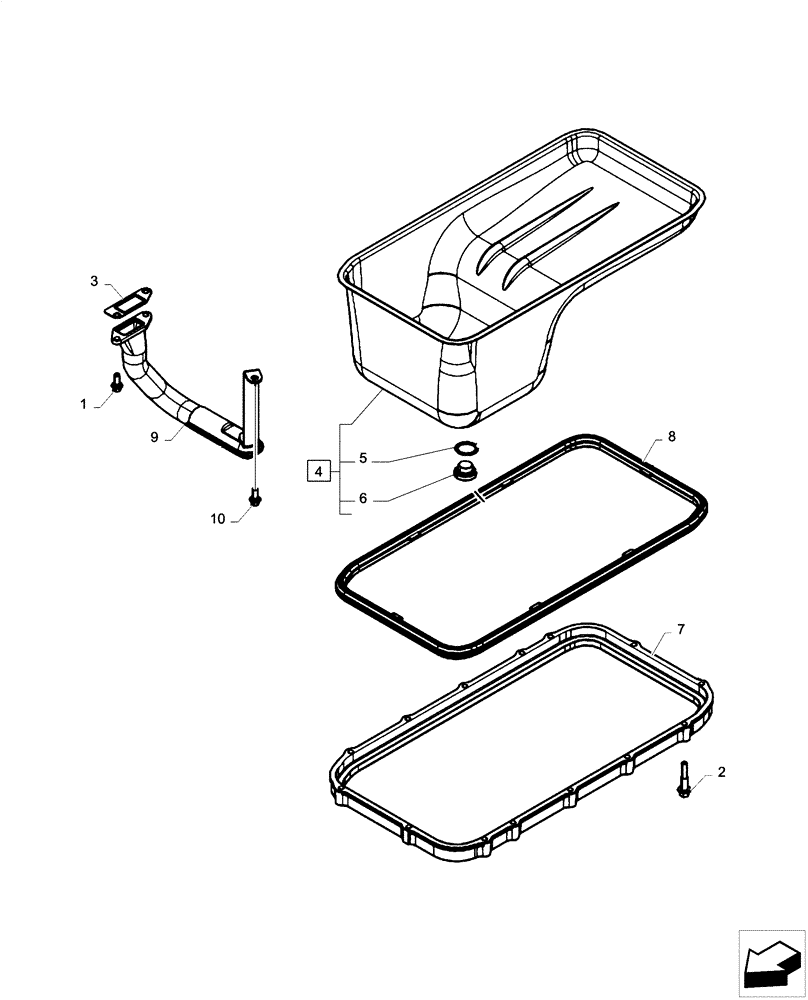

Запчасти Case IH F4HE0484D B101 (10.102.AP) - OIL PAN (10) - ENGINE

1

84598449

FLANGE BOLT

M8 x 20

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

14шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

504349107

ENGINE OIL PAN

Incl 5, 6

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

7

4897876

SPACER

1шт.

8

4897877

OIL PAN GASKET SET

1шт.

9

4891791

SUCTION PIPE

1шт.
