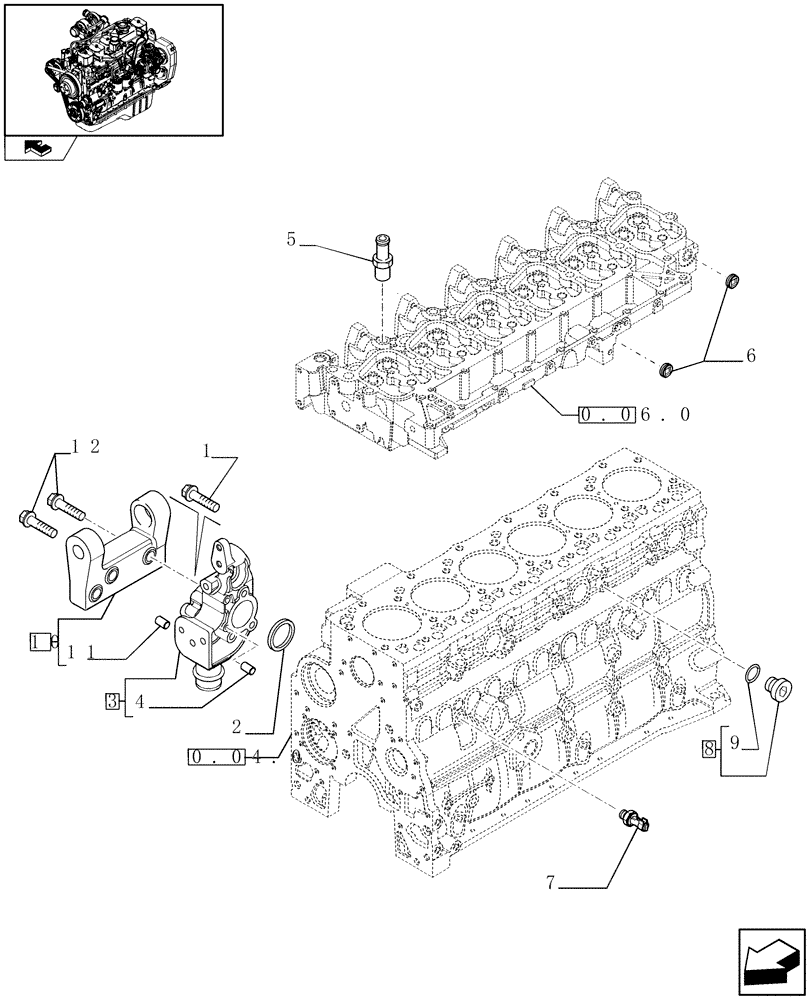

Запчасти Case IH F4GE9684R J600 (0.32.3) - PIPING - ENGINE COOLING SYSTEM (504212393-504038202-504043983-504198762-504175892)

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10X130

2шт.

1

2854424

SCREW,Hex, Flg Hd, M10 x 1.5 x 70mm

M10 x 70

1шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2855443

FITTING

- ASSY

1шт.

4

4895576

DOWEL

2шт.

5

2853761

NIPPLE

1шт.

6

4895078

PIPE PLUG,1/2"-14

18X1.5 - Assy

2шт.

7

2852735

PRESSURE SWITCH,Oil Pressure

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

2855462

BRACKET

- ASSY

1шт.

11

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

12

2852295

SCREW,Hex, M8 x 1.25 x 40mm

M8X1,25X40

3шт.
