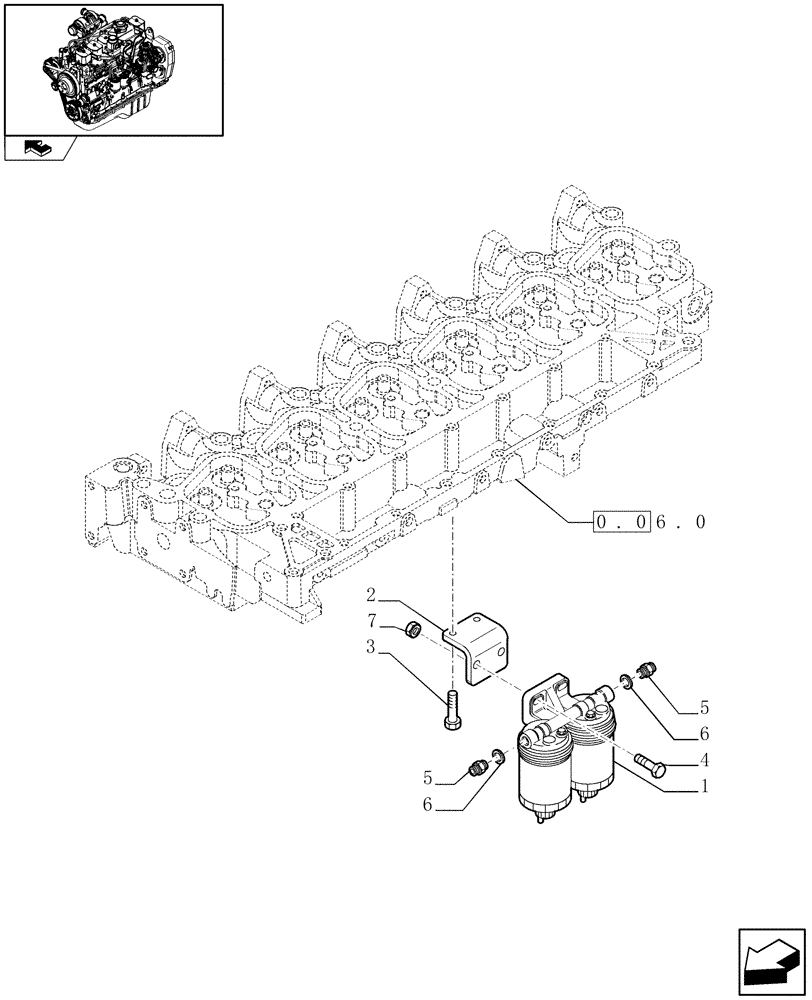

Запчасти Case IH F4GE9684R J600 (0.20.0[01]) - FUEL FILTER (504069756)

1

2852354

FUEL FILTER

- ASSY

1шт.

SEE ASSY PAGE 2

1шт.

2

2853320

SUPPORT

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

4

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

2шт.

5

4893833

HYD CONNECTOR

M10X1.5

1шт.

6

2852356

SEALING WASHER

D=14X20X1.5

1шт.

7

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

M10X1.5

2шт.
