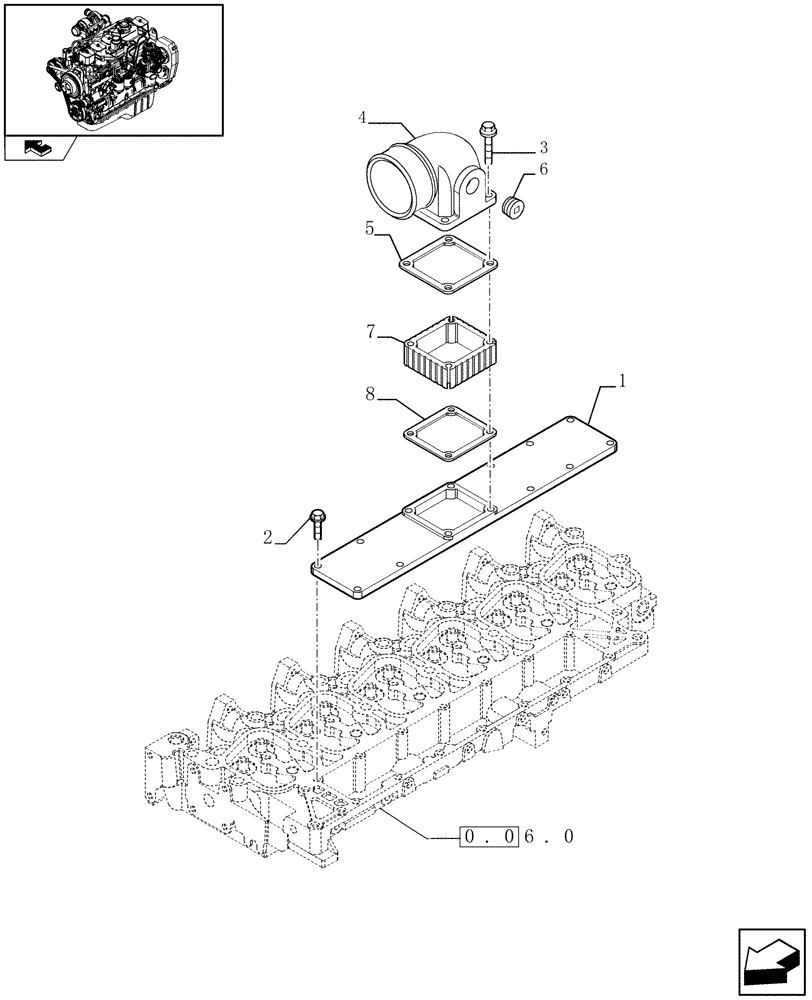

Запчасти Case IH F4GE9684R J600 (0.07.1) - INTAKE MANIFOLD (504069562-504166165-504263010)

1

2852333

COVER

1шт.

2

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

10шт.

3

4895294

BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9

4шт.

4

4895424

INLET MANIFOLD

1шт.

5

4899921

GASKET,1.2mm Thk

1шт.

6

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

7

2856263

SPACER,93mm x 98mm

1шт.

8

4899921

GASKET,1.2mm Thk

1шт.
