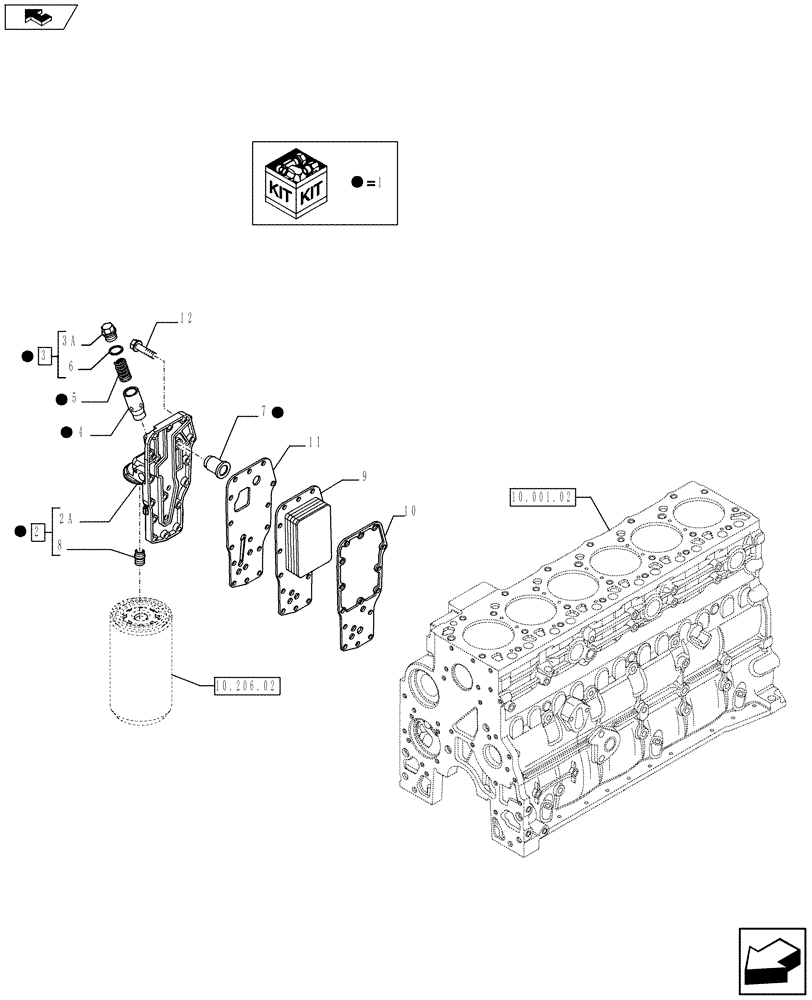

Запчасти Case IH F4GE9684D J604 (10.408.01) - HEAT EXCHANGER - ENGINE (10) - ENGINE

1

2853782

OIL COOLER

- ASSY

1шт.

2

4899643

FILTER HEAD

- ASSY Contains Ref.2A, 8

1шт.

2a

NSS

NOT SOLD SEPARAT

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

- ASSY Contains Ref.3A, 6

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

17916280

SEAL

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

2853604

OIL COOLER

1шт.

9

4896407

OIL COOLER

1шт.

10

2830559

GASKET,0.5mm Thk

1шт.

11

4896409

GASKET,1.55mm Thk

1шт.

12

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.
