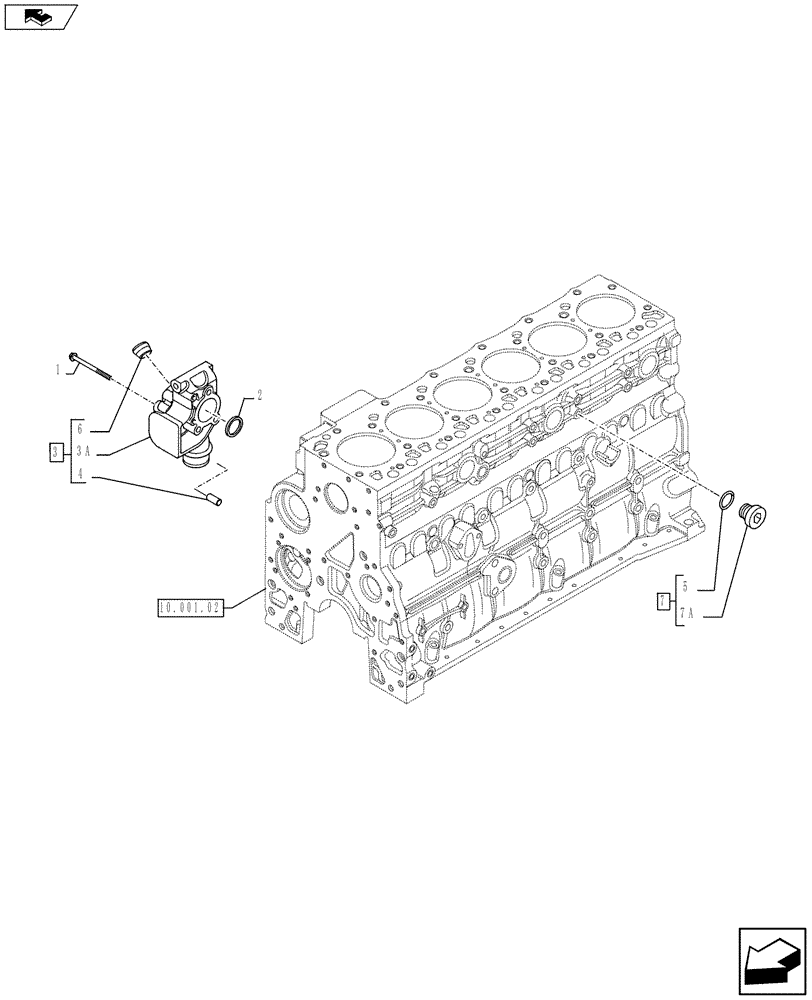

Запчасти Case IH F4GE9684D J604 (10.402.01[01]) - PIPING - ENGINE COOLING SYSTEM (10) - ENGINE

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

1

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2853125

HOUSING

- Assy Contains Ref.3A, 4, 6

1шт.

3a

NSS

NOT SOLD SEPARAT

1шт.

4

2853128

DOWEL,M6.35 x 19 L

2шт.

5

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

6

2853127

PLUG,1/2"-14 NPTF

1шт.

7

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy Contains Ref.5, 7A

1шт.

7a

NSS

NOT SOLD SEPARAT

1шт.
