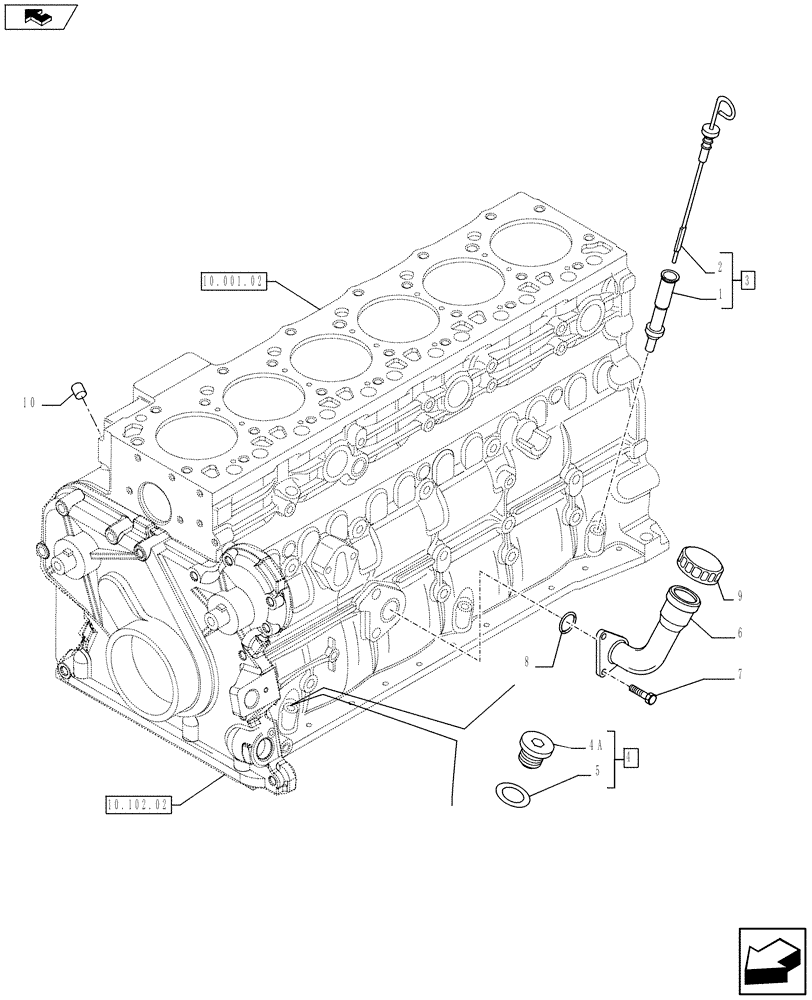

Запчасти Case IH F4GE9684D J604 (10.304.01[01]) - ENGINE OIL DIPSTICK (10) - ENGINE

1

2852603

PIPE

- OIL LEVEL

1шт.

2

2853330

DIPSTICK

1шт.

3

2853329

- Asst Contains Ref.1, 2

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy Contains Ref.4A, 5

1шт.

4a

NSS

NOT SOLD SEPARAT

1шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2852377

NECK FILLER

1шт.

7

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

8

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

9

2852136

CAP,48mm ID x 56mm OD x 18mm W

1шт.

10

4895406

EXPANSION PLUG,9.8mm OD

3шт.
