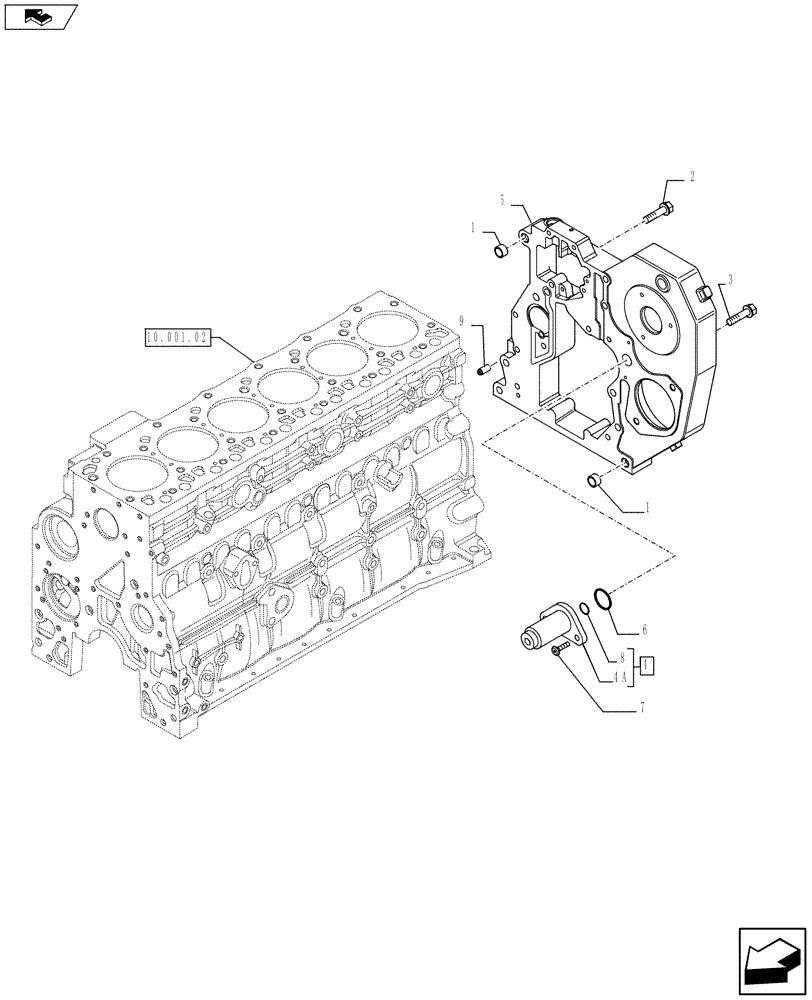

Запчасти Case IH F4GE9684D J604 (10.106.03) - CRANKCASE COVERS (10) - ENGINE

1

4899026

DOWEL,M18 x 10

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

3

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

3

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

4

2855287

HOUSING

Timing Pin Assy Contains Ref.4A, 8

1шт.

4a

NSS

NOT SOLD SEPARAT

1шт.

5

2852320

COVER

1шт.

6

2852519

O-RING,M21.95 ID x 1.78 Thk

1шт.

7

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

8

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

9

4899126

THREADED INSERT

1шт.
