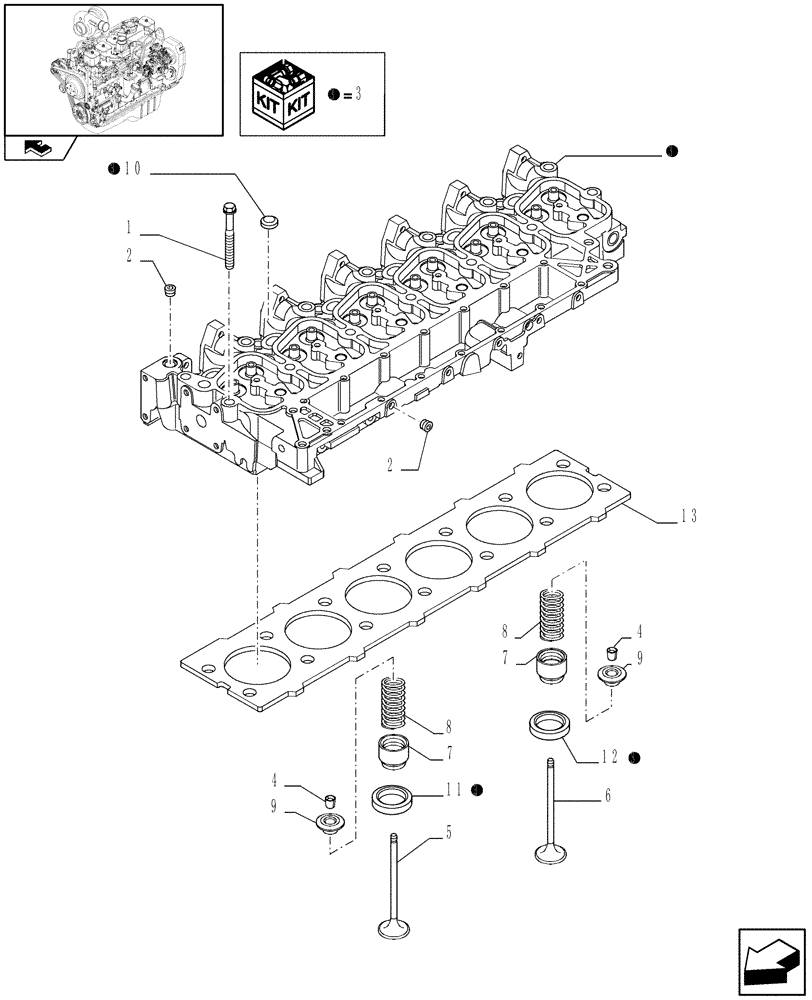

Запчасти Case IH F4GE9684D J603 (0.06.0) - CYLINDER HEAD (2855939)

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

M12 x 130

6шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

14шт.

2

4895078

PIPE PLUG,1/2"-14

3шт.

3

4895768

CYLINDER HEAD

ASSY

1шт.

4

4895183

COLLET

24шт.

5

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

6

4895187

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

7

4895347

SEAL

12шт.

8

4895215

VALVE SPRING,Compression, 32.8mm OD x 63.5 mmL

12шт.

9

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

12шт.

10

4895179

EXPANSION PLUG,M20.93

3шт.

11

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

Exhaust

6шт.

12

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

Intake

6шт.

13

2830923

CYLINDER HEAD GASKET,1.15mm Thk

SP=1.15

1шт.

13

2830922

CYLINDER HEAD GASKET,1.4mm Thk

1шт.
