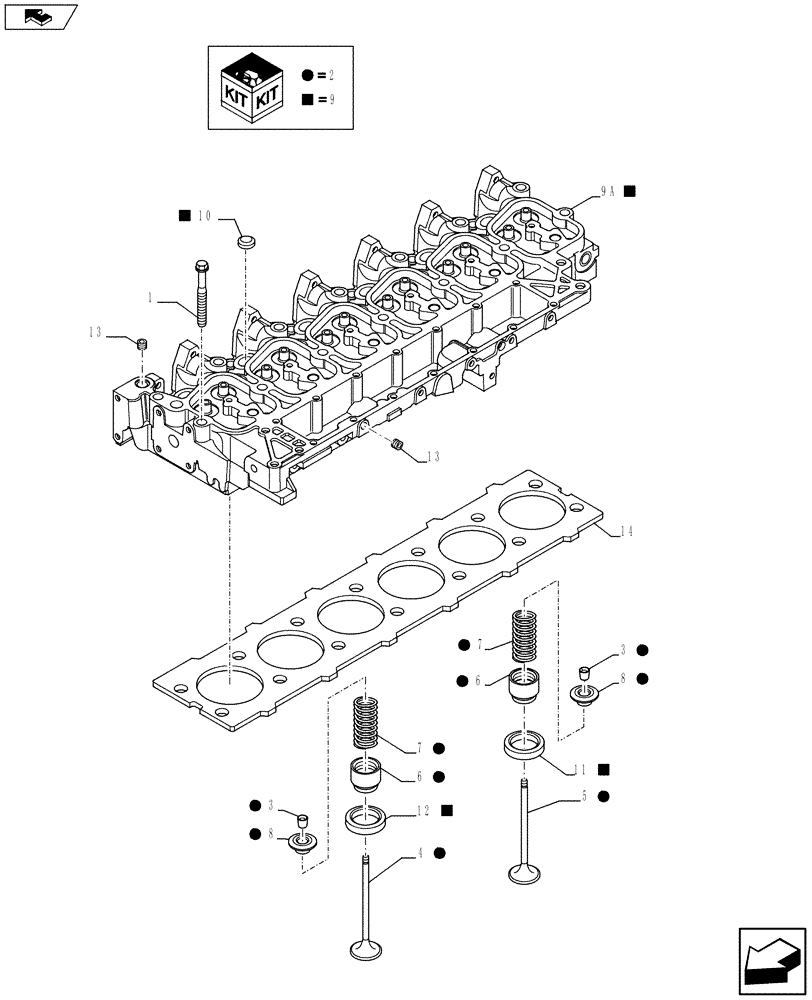

Запчасти Case IH F4GE9684C J602 (10.101.01) - CYLINDER HEAD (10) - ENGINE

1

4892861

CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73

6шт.

1

4892859

BOLT,Flng, M12 x 1.75 x 143mm

14шт.

2

4895768

CYLINDER HEAD

Assy, Contains Ref. 3 - 8

1шт.

3

4895183

COLLET

24шт.

4

4895188

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE Exhaust

6шт.

5

4895187

STD INLET VALVE

STD ENGINE INLET VALVE Intake

6шт.

6

4895347

SEAL

12шт.

7

2831472

VALVE SPRING,Compression, 32.8mm OD x 65.7mm L

12шт.

8

4895184

RETAINER,34mm OD, 10.63mm ID, 14.5mm L

12шт.

9

4895765

CYLINDER HEAD

Assy, Contains Ref. 9A - 12

1шт.

9a

NSS

NOT SOLD SEPARAT

1шт.

10

4895179

EXPANSION PLUG,M20.93

3шт.

11

4897179

VALVE SEAT,38 mmID x 47mm OD x 6.9mm L

Intake

6шт.

12

4897178

VALVE SEAT,36mm ID x 43mm OD x 6.7mm L

Exhaust

6шт.

13

4895078

PIPE PLUG,1/2"-14

3шт.

14

2830922

CYLINDER HEAD GASKET,1.4mm Thk

1,25mm Thk

1шт.

14

2830923

CYLINDER HEAD GASKET,1.15mm Thk

1,15mm Thk

1шт.
