(10.304.01[02]) - OIL PUMP - ENGINE

Запчасти Case IH F4GE9684C J602 (10.304.01[02]) - OIL PUMP - ENGINE (10) - ENGINE

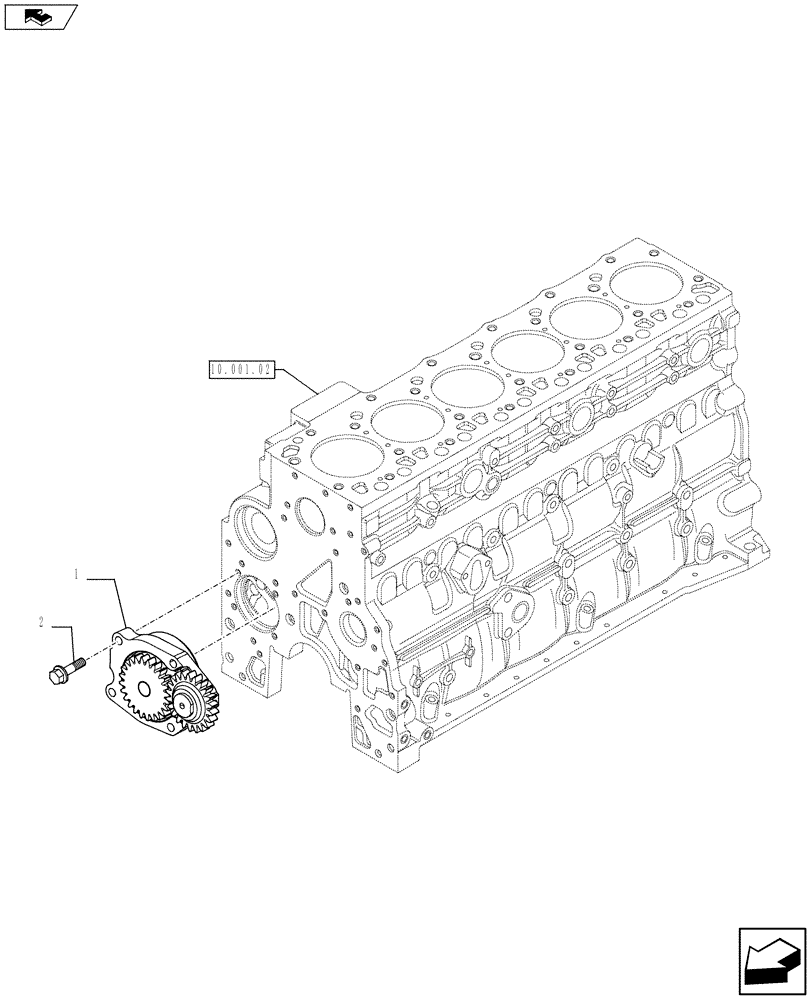

Схема запчастей Case IH F4GE9684C J602 - (10.304.01[02]) - OIL PUMP - ENGINE (10) - ENGINE
2
10.001.02
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897481

ENGINE OIL PUMP

, Serial Range: Alternative-2853591

1шт.

1

4897481R

REMAN-ENG OIL PUMP

F4GE9684C*J602 ENGINE 5801385852 - 84369829, Serial Range: Alternative-2853591

1шт.

1

4897481C

CORE-ENGINE OIL PUMP

Return number

1шт.

1

2853591

ENGINE OIL PUMP

, Serial Range: Alternative-4897481

1шт.

1

4897481R

REMAN-ENG OIL PUMP

F4GE9684C*J602 - ENGINE 5801385852 - 84369829 Serial Range: Alternative-4897481, Reman for new P/N 2853591

1шт.

1

4897481C

CORE-ENGINE OIL PUMP

Return number

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.
