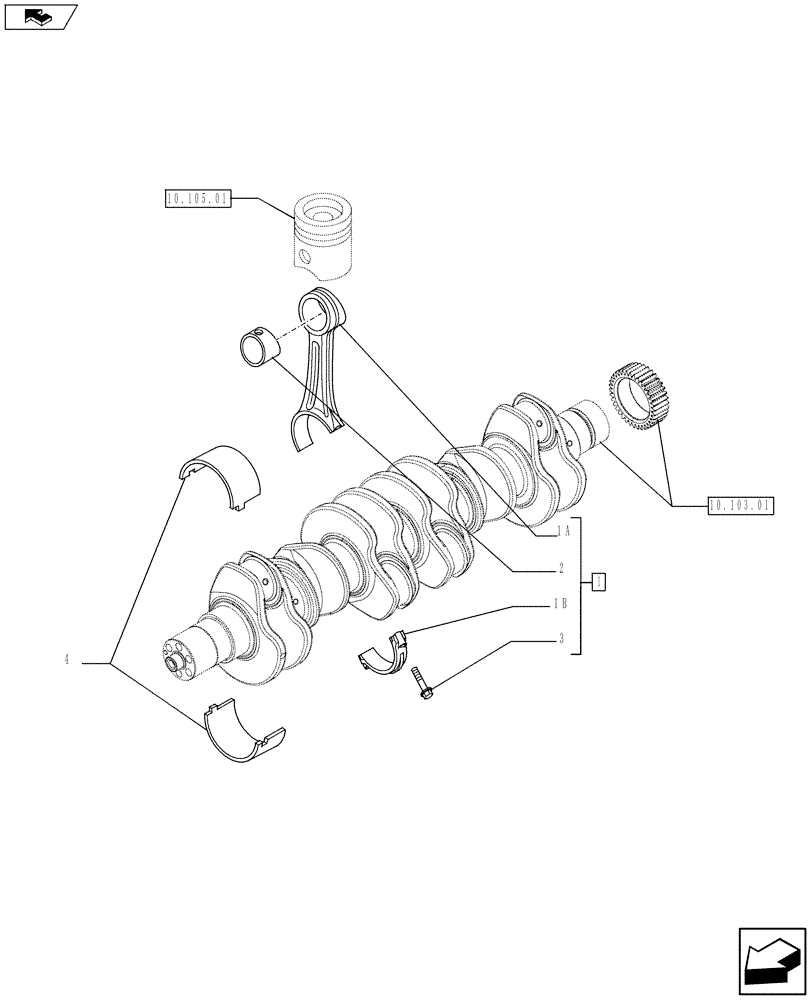

Запчасти Case IH F4GE9684C J602 (10.105.02) - CONNECTING ROD (10) - ENGINE

1

2831298

CONNECTING ROD

- ASSY Contains Ref.1A, 2, 3

6шт.

2831298R

REMAN-CONNECTING ROD

F4GE9684C*J602 ENGINE 5801385852 - 84369829

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

1b

NSS

NOT SOLD SEPARAT

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

8093882

BEARING SET

6шт.

4

8094960

BEARING SET,(-0.250)

6шт.

4

8094961

BEARING SET,(-0.500)

6шт.
