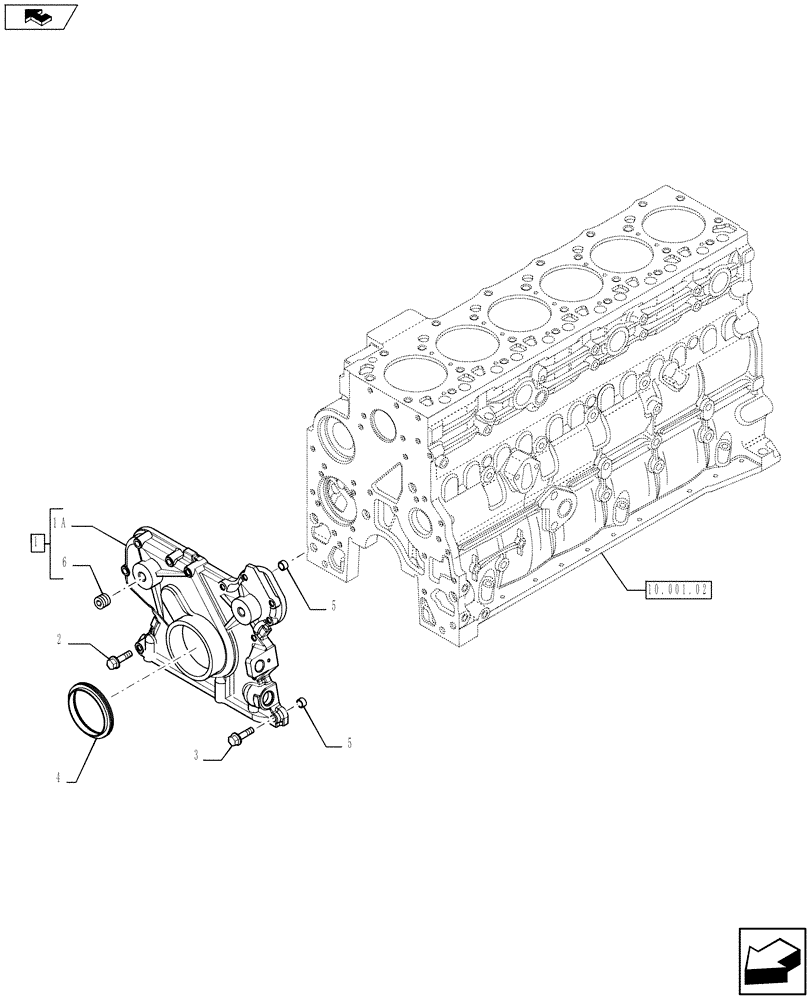

Запчасти Case IH F4GE9684C J602 (10.102.02) - CRANKCASE COVERS (10) - ENGINE

1

4897026

COVER

ASSY Contains Ref.1A, 6

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

5шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

8шт.

4

84575644

OIL SEAL,70mm ID x 100mm OD x 16mm Thk

70 x 100 x 12,5/16

1шт.

5

4891209

DOWEL,M13 x 8 L

2шт.

6

2852208

INSERT

M10 x 1,5 x 18

2шт.
