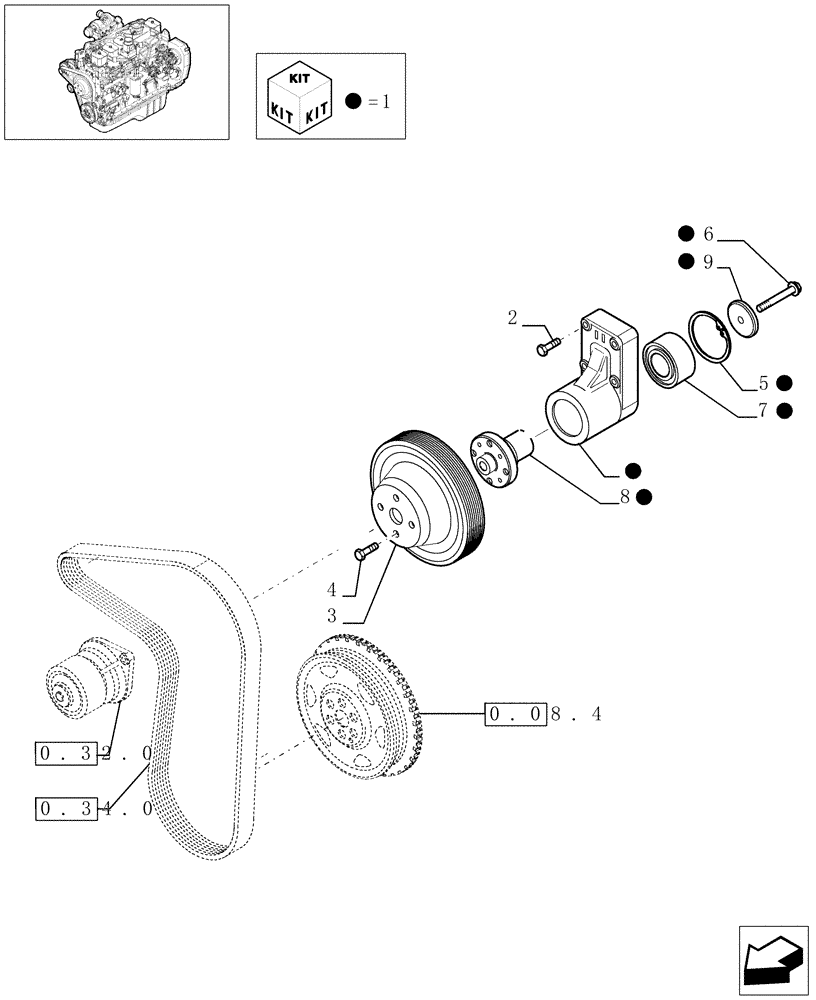

Запчасти Case IH F4GE9684C J600 (0.34.5[01]) - FAN DRIVE (504036557-504063977)

1

2852170

SUPPORT

- ASSY

1шт.

2

4899053

SCREW,Hex Flg, M8 x 45

4шт.

3

J914462

PULLEY,163mm OD

1шт.

4

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

4шт.

5

2852171

SNAP RING

1шт.

6

2852172

BOLT,Flng, M10 x 1.5 x 70mm

1шт.

7

4892732

BALL BEARING,34mm ID x 64mm OD x 37mm W

1шт.

8

4892426

HUB

1шт.

9

4890732

RETAINER,11.50mm ID x 52mm OD x 7mm

1шт.
