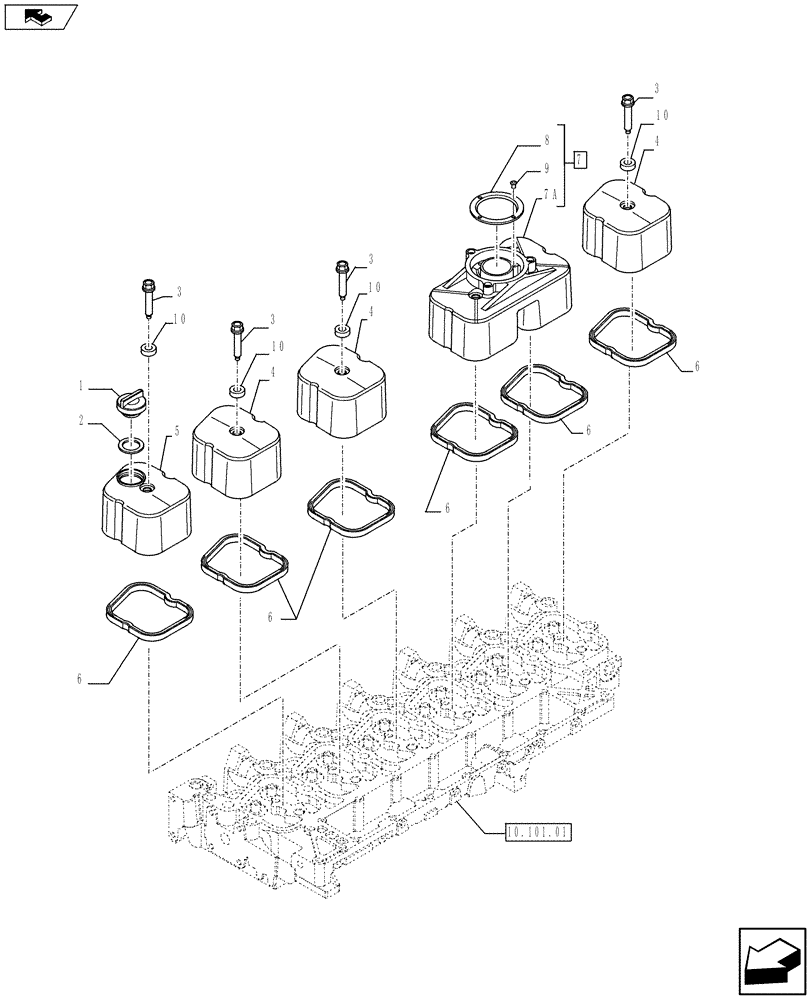

Запчасти Case IH F4GE9684B J605 (10.101.02) - CYLINDER HEAD COVERS (504137527) (10) - ENGINE

1

4895202

FILLER CAP

1шт.

2

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

1шт.

3

4895214

SCREW,Flng, M8 x 1.25 x 34.549mm, Cl 8.8

6шт.

4

2852032

VALVE COVER

3шт.

5

2852894

VALVE COVER

1шт.

6

2852033

GASKET,7mm Thk

6шт.

7

2830784

VALVE COVER

ASSY Contains Ref.7A, 8, 9

1шт.

7a

NSS

NOT SOLD SEPARAT

1шт.

8

2830775

BAFFLE

1шт.

9

2830281

SELF-TAP SCREW,M2.9 x 6.5

4шт.

10

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.
