(10.304.01[02]) - OIL PUMP - ENGINE (504099881)

Запчасти Case IH F4GE9684B J605 (10.304.01[02]) - OIL PUMP - ENGINE (504099881) (10) - ENGINE

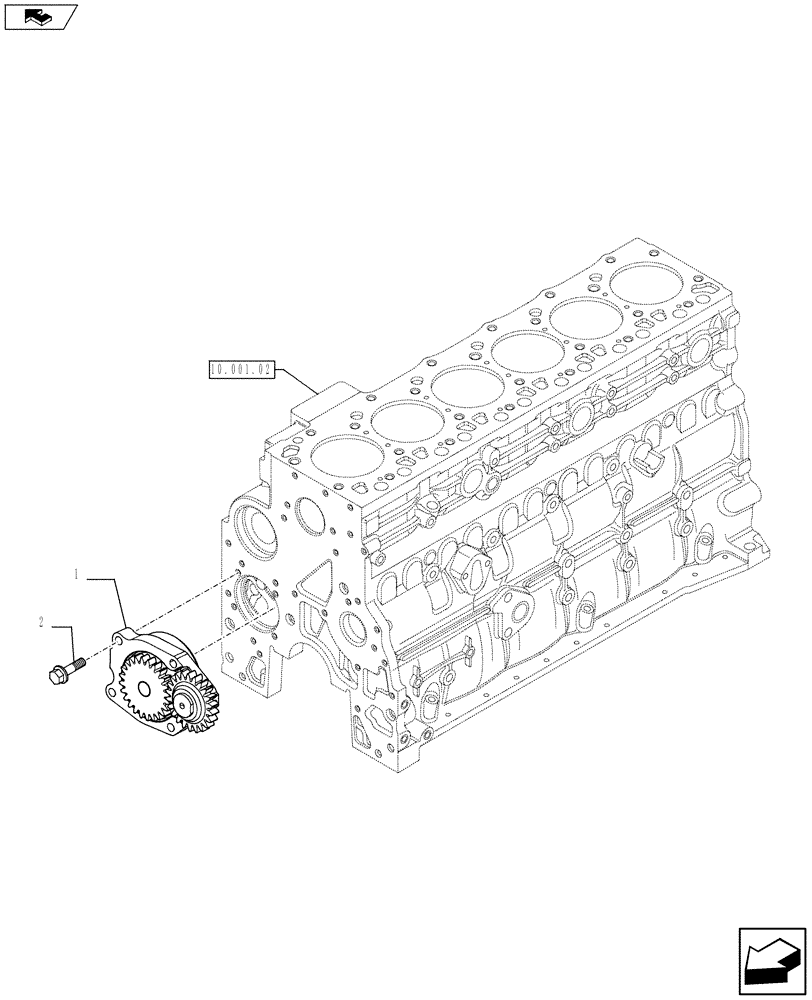

Схема запчастей Case IH F4GE9684B J605 - (10.304.01[02]) - OIL PUMP - ENGINE (504099881) (10) - ENGINE
home
2
10.001.02
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897481

ENGINE OIL PUMP

1шт.

1

2853591

ENGINE OIL PUMP

Alternative

1шт.

2

4899090

SCREW,Hex Flg, M8 x 1.25 x 30

4шт.
