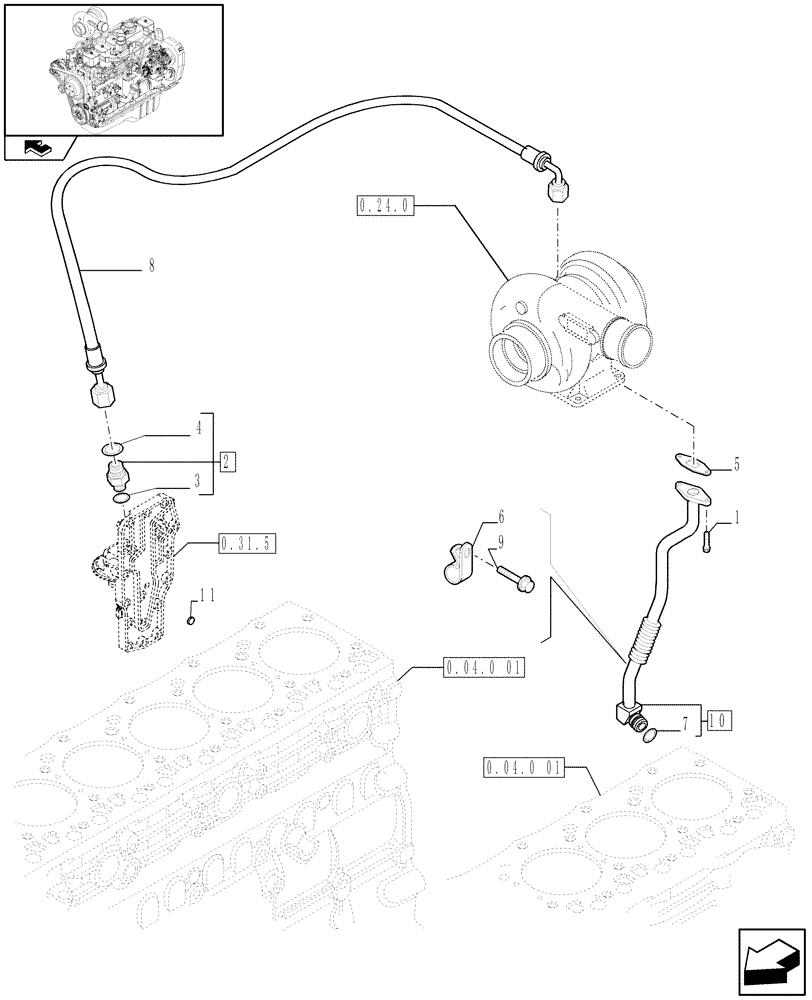

Запчасти Case IH F4GE9684B J604 (0.30.5) - PIPING - ENGINE OIL (2853332)

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

2

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

ASSY

1шт.

3

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

1шт.

6

4899827

SUPPORT

1шт.

7

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

8

2852679

HYDRAULIC HOSE

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

1шт.

10

2852919

RIGID TUBE

ASSY

1шт.

11

4895089

PLUG,0.886" L

.886" OD

1шт.
