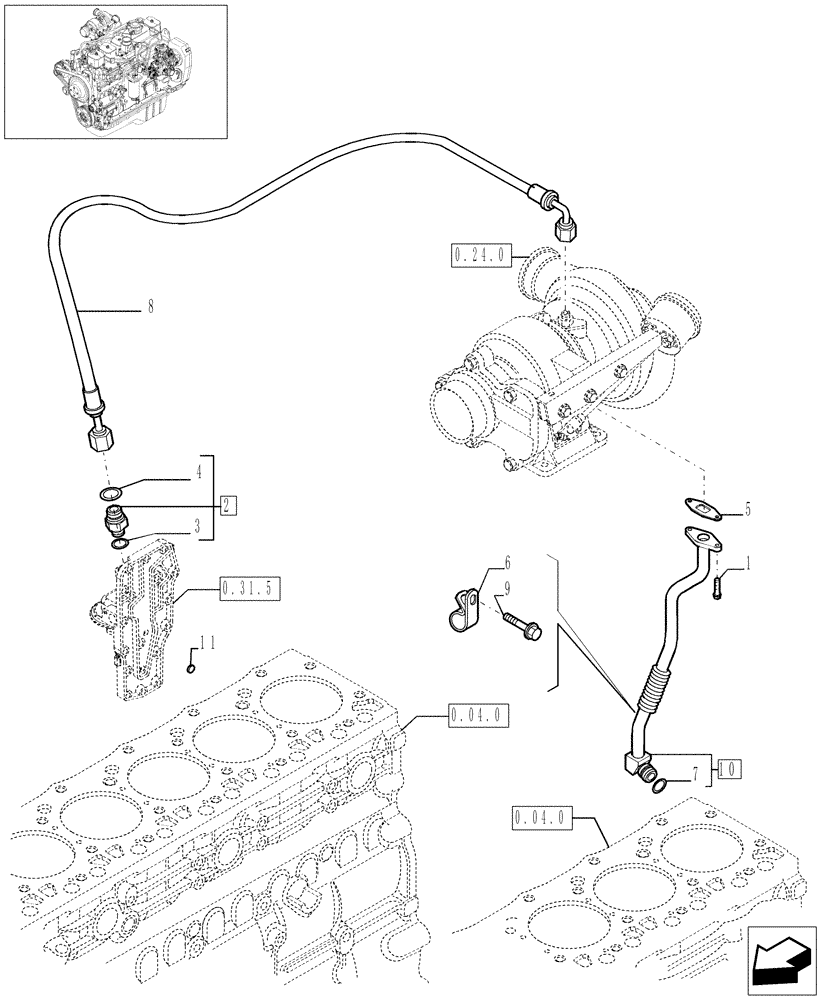

Запчасти Case IH F4GE9684B J601 (0.30.5[01]) - PIPING - ENGINE OIL (504019901)

1

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

- Assy

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

1шт.

6

4899827

SUPPORT

1шт.

7

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

8

2852679

HYDRAULIC HOSE

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

1шт.

10

2852919

RIGID TUBE

- ASSY

1шт.

11

4895089

PLUG,0.886" L

.886" OD

1шт.
