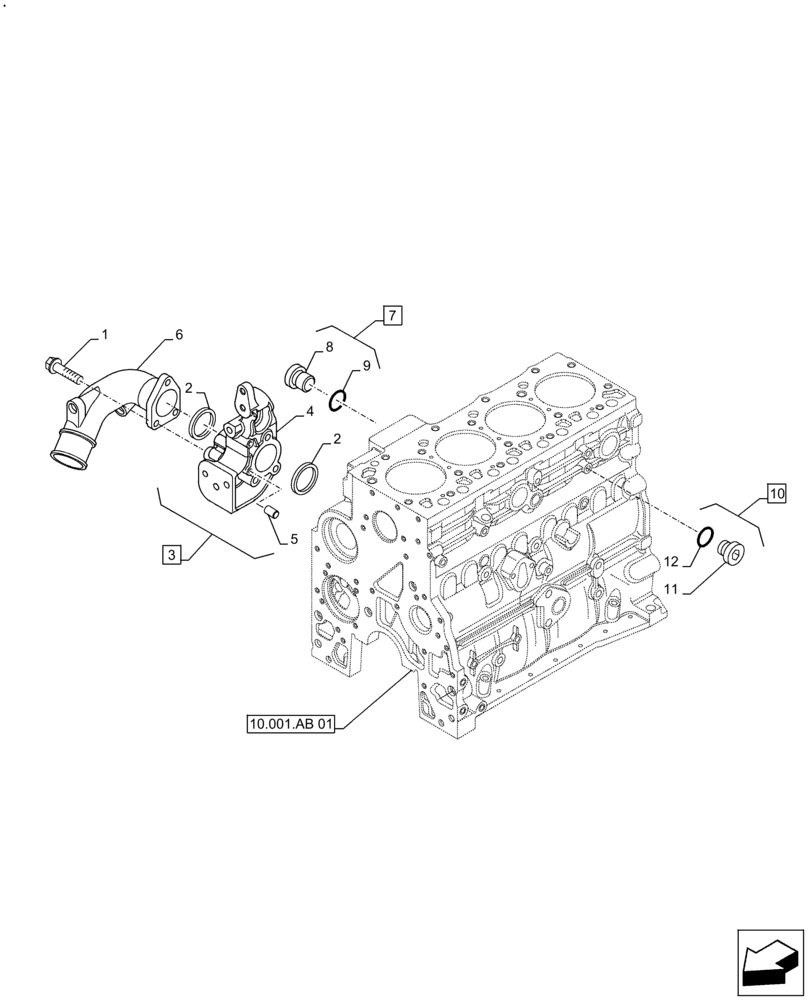

Запчасти Case IH F4GE9484A J613 (10.400.BB[02]) - WATER PUMP, INLET MANIFOLD (10) - ENGINE

1

2852923

SCREW

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

ASSY, Incl 4 - 5

1шт.

4

2852393

HYD CONNECTOR

Connector-Water Inlet, Incl in 3

1шт.

5

4895576

DOWEL

2шт.

6

2852922

ELBOW

1шт.

7

4895392

HEX SOCKET PLUG,M18 x 1.5

ASSY, Incl 8 - 9

2шт.

8

4895394

HEX SOCKET PLUG,M18 x 1.5

Plug, Incl in 7

2шт.

9

4895393

O-RING,2.2mm Thk x 15.3mm ID

2шт.

10

4895623

HEX SOCKET PLUG,M16 x 1.5

ASSY, Incl 11 - 12

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

12

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.
