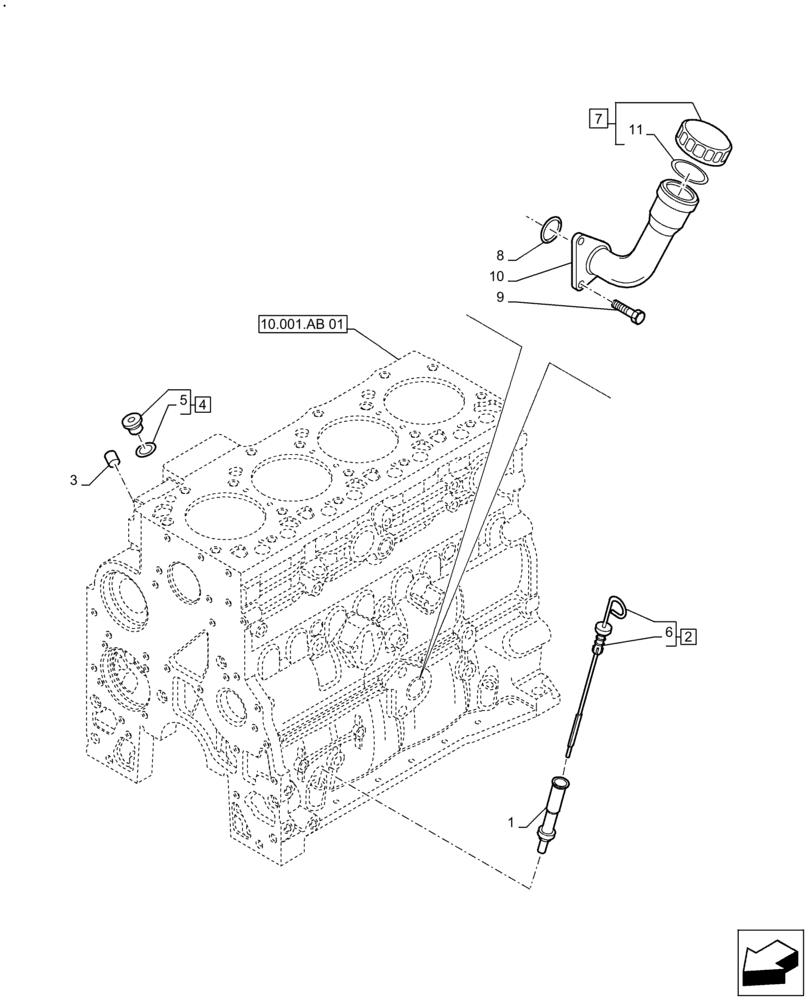

Запчасти Case IH F4GE9484A J613 (10.304.AS) - DIPSTICK (10) - ENGINE

1

2852122

TUBE,81 mm Length

OIL LEVEL

1шт.

2

2852125

DIPSTICK,351.5mm L

ASSY

1шт.

3

4895406

EXPANSION PLUG,9.8mm OD

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

ASSY

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2852121

DIPSTICK

1шт.

7

2853410

FILLER CAP,Female

1шт.

8

2852135

O-RING,2.6mm Thk x 37.7mm ID

1шт.

9

2852134

FLANGE BOLT,Hex, M12 x 1.75 x 25mm

2шт.

10

2853407

NECK FILLER,143, 117.3 mm Length

1шт.

11

2853412

O-RING,0.21" Thk x 1.475" ID

1шт.
