(10.250.AD) - TURBOCHARGER LUBE LINE

Запчасти Case IH F4GE9484A J613 (10.250.AD) - TURBOCHARGER LUBE LINE (10) - ENGINE

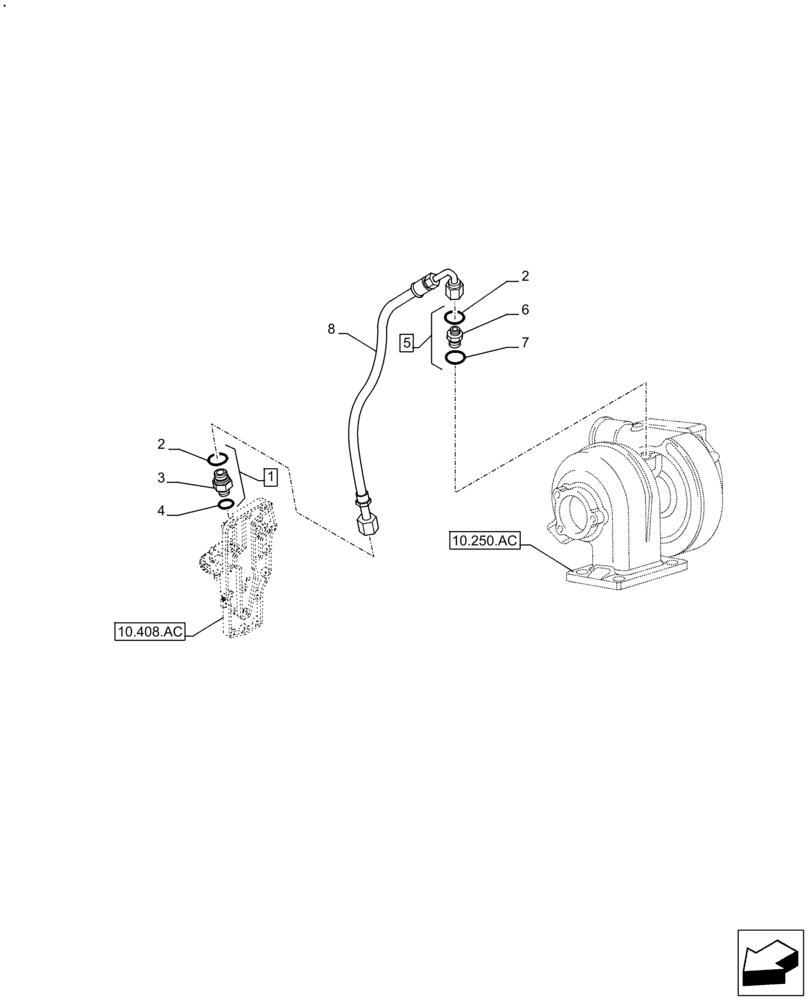

Схема запчастей Case IH F4GE9484A J613 - (10.250.AD) - TURBOCHARGER LUBE LINE (10) - ENGINE
2
5
4
7
6
2
1
8
3
10.250.ac
10.408.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

ASSY, Incl 2 - 4

1шт.

2

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

3

NSS

NOT SOLD SEPARAT

Connector Male, Incl in 1

1шт.

4

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

5

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

ASSY, Incl 2, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Connector Male, Incl in 5

1шт.

7

4899121

SEALING WASHER,10.2mm ID x 19mm OD x 2mm Thk

1шт.

8

4899377

HOSE

Fuel hose

1шт.
