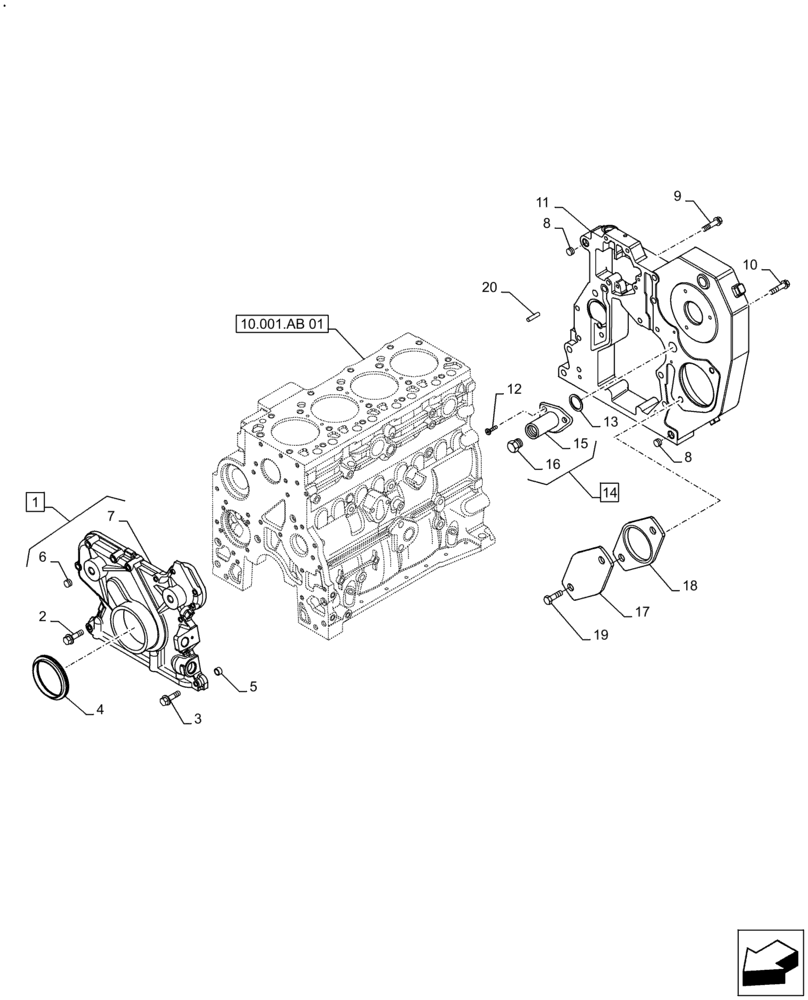

Запчасти Case IH F4GE9484A J613 (10.102.AK) - CRANKCASE, COVERS (10) - ENGINE

1

4897026

COVER

ASSY, Incl 6, 7

1шт.

2

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

5шт.

3

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

8шт.

4

84575644

OIL SEAL,70mm ID x 100mm OD x 16mm Thk

1шт.

5

4891209

DOWEL,M13 x 8 L

2шт.

6

2852208

INSERT

2шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

8

4899026

DOWEL,M18 x 10

2шт.

9

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

4шт.

10

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

5шт.

10

4899073

SCREW,Hex Flg, M12 x 1.75 x 30

1шт.

11

2852619

HOUSING

1шт.

12

4895355

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

2852519

O-RING,M21.95 ID x 1.78 Thk

1шт.

14

2855287

HOUSING

ASSY, Incl 15, 16

1шт.

15

2855288

HOUSING

1шт.

16

2855289

HEX SOCKET PLUG

1шт.

17

2852175

COVER

1шт.

18

4896897

GASKET,1.35mm Thk

1шт.

19

4899037

SCREW

2шт.

20

4899126

THREADED INSERT

2шт.
