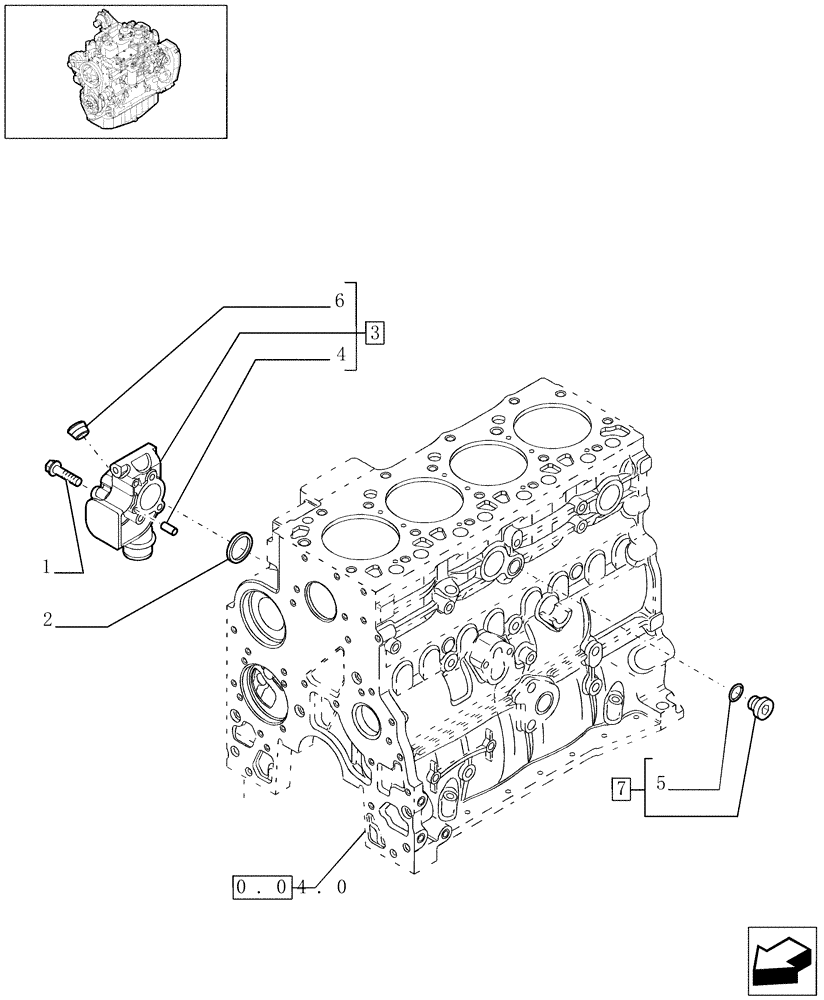

Запчасти Case IH F4GE9484A J602 (0.32.3[01]) - PIPING - ENGINE COOLING SYSTEM (504010574-504038202)

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

1

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

2шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2853125

HOUSING

- Assy

1шт.

4

504023030

DOWEL

2шт.

5

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

6

504023028

PLUG

1шт.

7

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.
