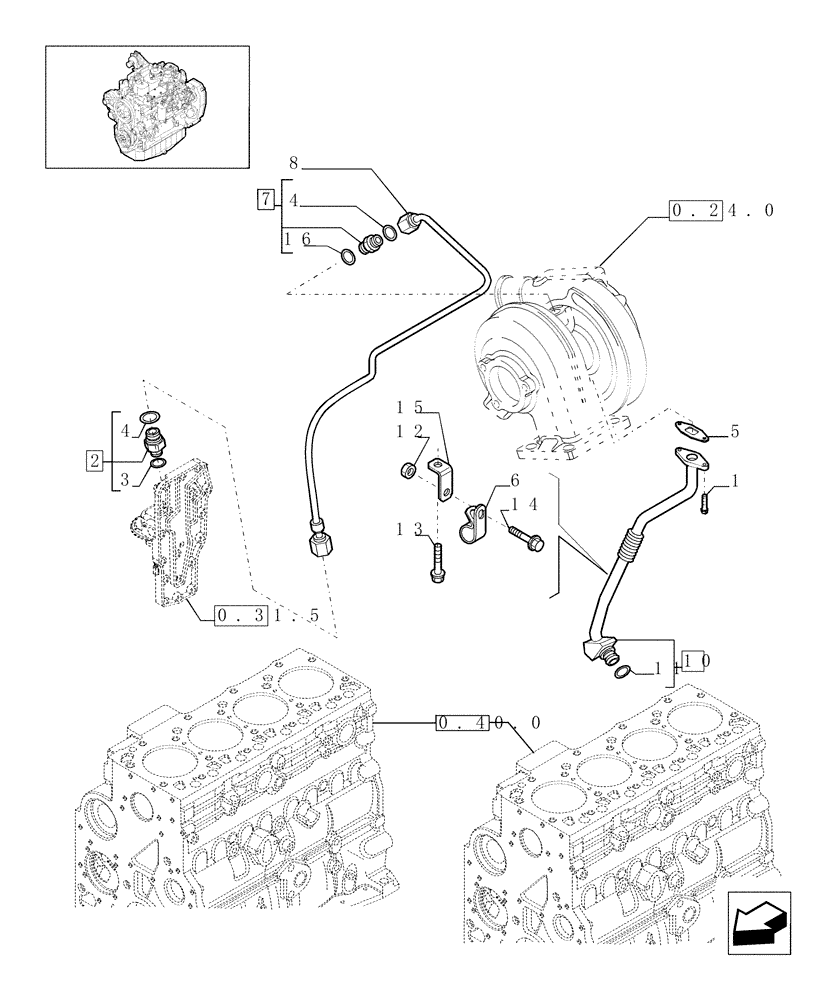

Запчасти Case IH F4GE9484A J602 (0.30.5[01]) - PIPING - ENGINE OIL (504019775)

1

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

- Assy

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

- Assy

1шт.

8

2853124

RIGID TUBE

1шт.

10

2853120

RIGID TUBE

- ASSY

1шт.

11

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

1шт.

12

2852197

FLANGE NUT,M6 x 1

1шт.

13

4899068

BOLT,Flng, M8 x 1.25 x 16mm

1шт.

14

2852101

FLANGE BOLT,Hex, M6 x 16mm

1шт.

15

2852196

BRACKET

1шт.

16

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.
