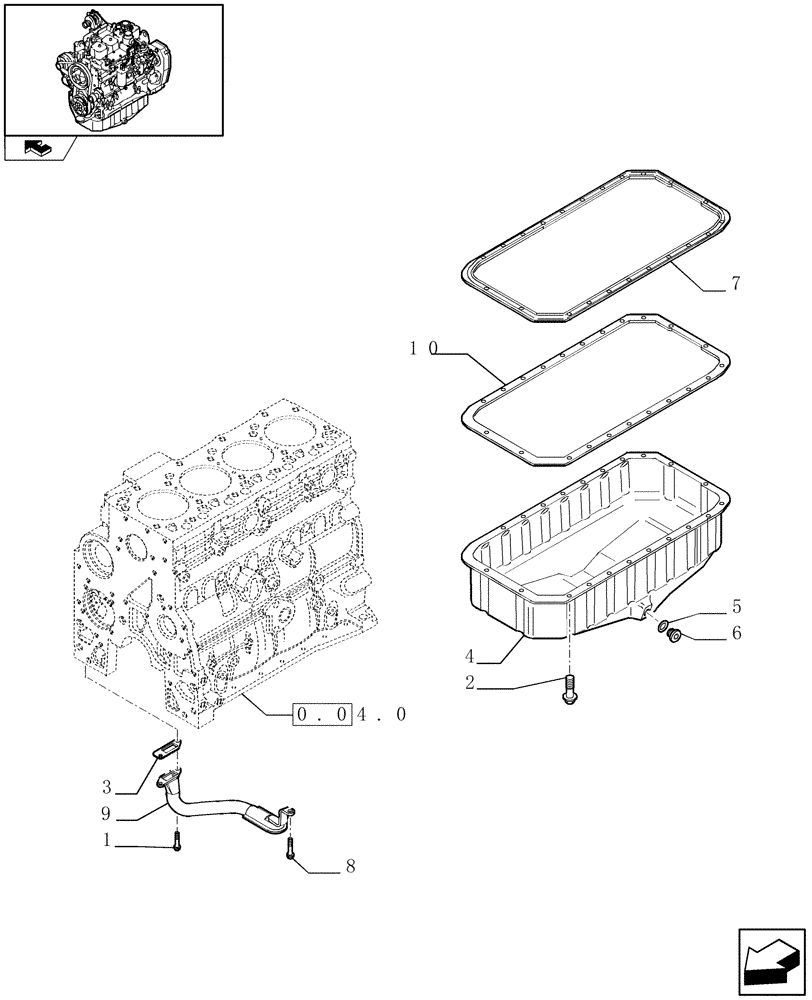

Запчасти Case IH F4GE9484A J600 (0.04.2) - ENGINE OIL SUMP (2853047)

1

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

14шт.

3

4898301

GASKET,0.42mm Thk

- ASSY

1шт.

4

2853048

ENGINE OIL PAN

1шт.

5

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.

6

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

7

4897877

OIL PAN GASKET SET

1шт.

8

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

1шт.

9

2853050

PIPE

1шт.

10

4897876

SPACER

1шт.
