Запчасти Case IH F4GE9484A J600 (0.02.2) - ENGINE BLOCK GASKET KIT

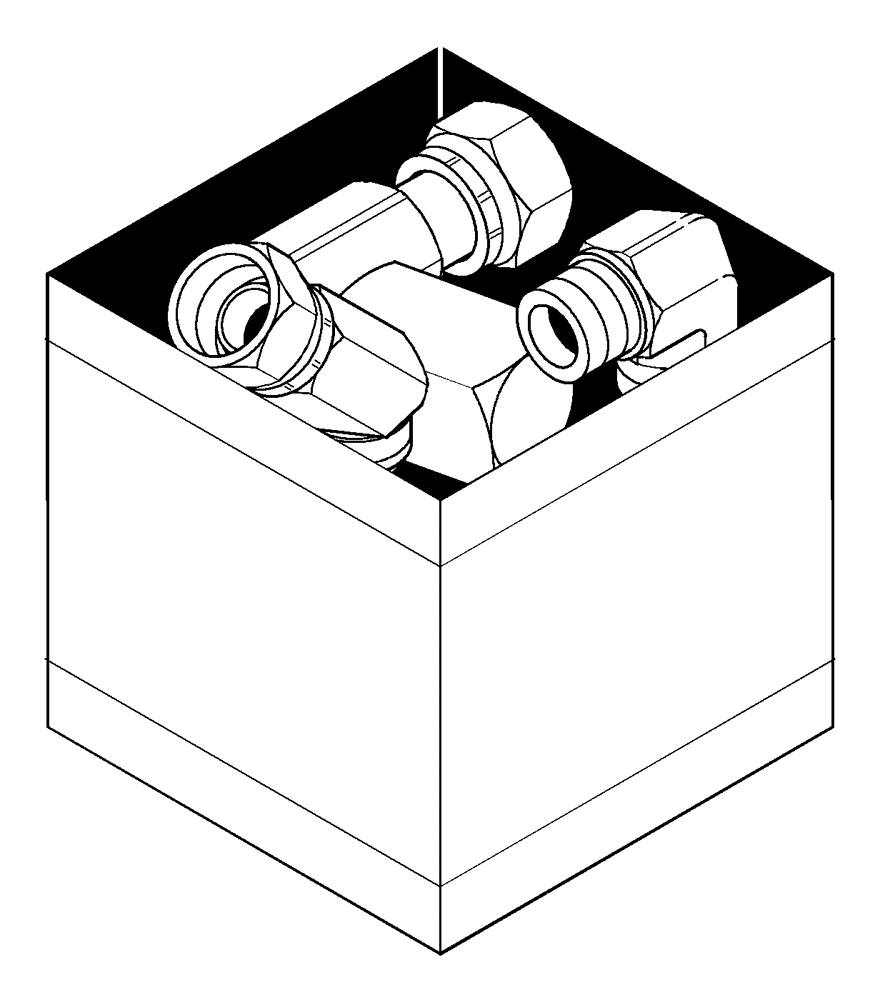

Схема запчастей Case IH F4GE9484A J600 - (0.02.2) - ENGINE BLOCK GASKET KIT

Артикул

Название

Примечание

Количество

87478875

ENGINE GASKET KIT

1шт.

1

2830972

GASKET,2.3mm Thk

Oil Pump

1шт.

2

4890832

OIL SEAL,M70 x 100 x 12.5/16

1шт.

3

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

SEALRING

1шт.

4

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

1шт.

6

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

7

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

8

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

9

4890700

GASKET,1.21mm Thk

1шт.

10

4890088

O-RING,44mm ID x 3mm Width

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

13

2830156

O-RING,70 Duro, M2.62 Thk

1шт.

14

4895039

EXPANSION PLUG,M17.73

3шт.

15

4895038

EXPANSION PLUG,M58.06

4шт.

16

4895228

EXPANSION PLUG,35.23mm x 7.94mm

2шт.

17

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

18

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

19

NSS

NOT SOLD SEPARAT

Loctite 5202

1шт.

20

2831317

GASKET,0.9mm Thk

1шт.

21

2830559

GASKET,0.5mm Thk

1шт.

22

4896409

GASKET,1.55mm Thk

1шт.

23

4895121

GASKET

1шт.

24

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

25

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

26

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

27

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

28

4897877

OIL PAN GASKET SET

1шт.

29

4895584

O-RING,0.924mm ID x 0.103mm Width

1шт.

30

4898301

GASKET,0.42mm Thk

1шт.

31

2853133

GASKET,51.5mm ID x 61.5mm OD x 16.5mm Thk

1шт.

32

2853535

GASKET,10.35mm Thk

1шт.

33

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

34

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

35

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

Выбрано товаров: 36
