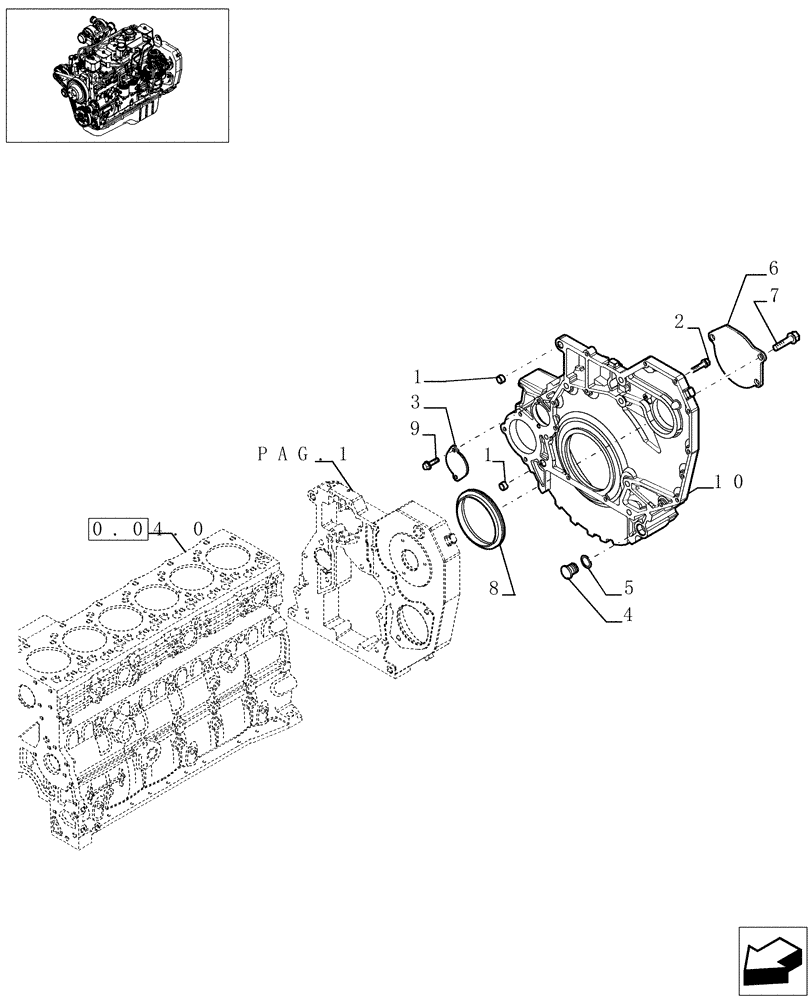

Запчасти Case IH F4GE0684E D600 (0.04.3[03]) - CRANKCASE COVERS (504035060)

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

2шт.

2

4899075

SCREW,Hex Flg, M10 x 1.5 x 40

11шт.

2

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

5шт.

2

4899074

SCREW,Hex Flg, M12 x 1.75 x 120

3шт.

3

4895358

COVER

1шт.

4

4895378

BUTTON PLUG,M29.2

1шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

1шт.

6

2852025

COVER

1шт.

7

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

3шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

9

4899103

SCREW,Hex Flg, M8 x 1.25 x 12

M8X17

2шт.

10

2852257

COVER

1шт.
