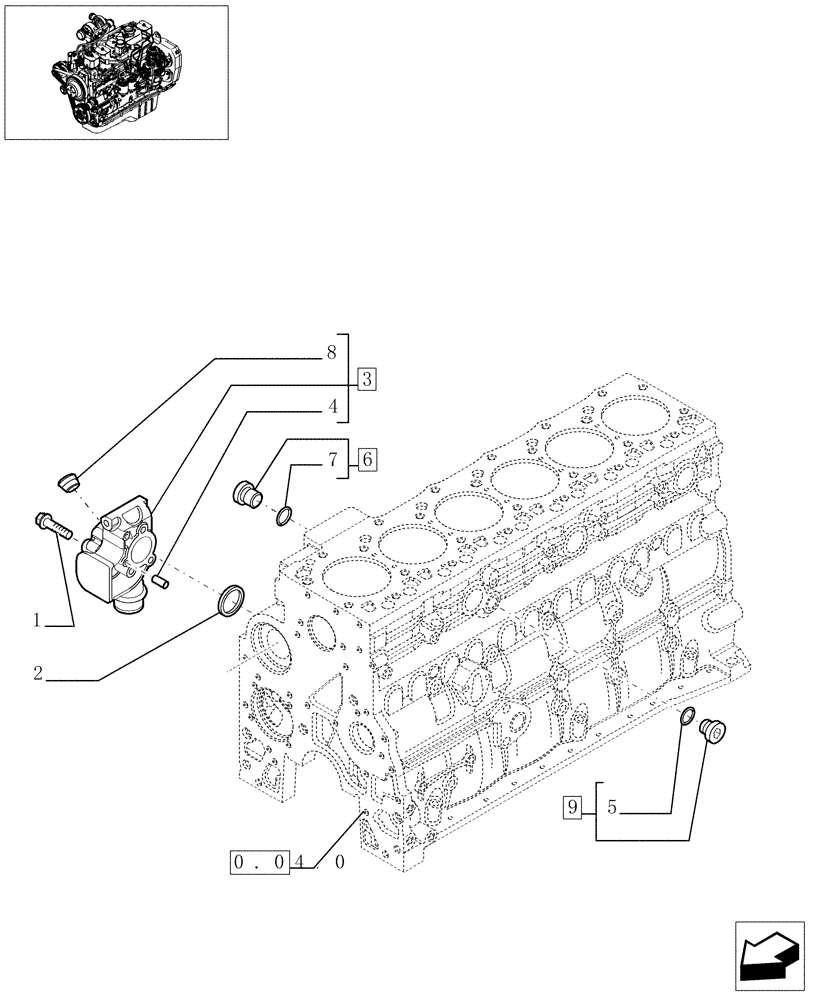

Запчасти Case IH F4GE0684E D600 (0.32.3[01]) - PIPING - ENGINE COOLING SYSTEM (504010574-504038202-504038362)

1

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

1

16599024

FLANGE BOLT,Hex, M10 x 120mm, Cl 8.8

10X120

2шт.

2

4895121

GASKET

1шт.

3

2853125

HOUSING

- Assy

1шт.

4

504023030

DOWEL

2шт.

5

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

6

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

504023028

PLUG

1шт.

9

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.
