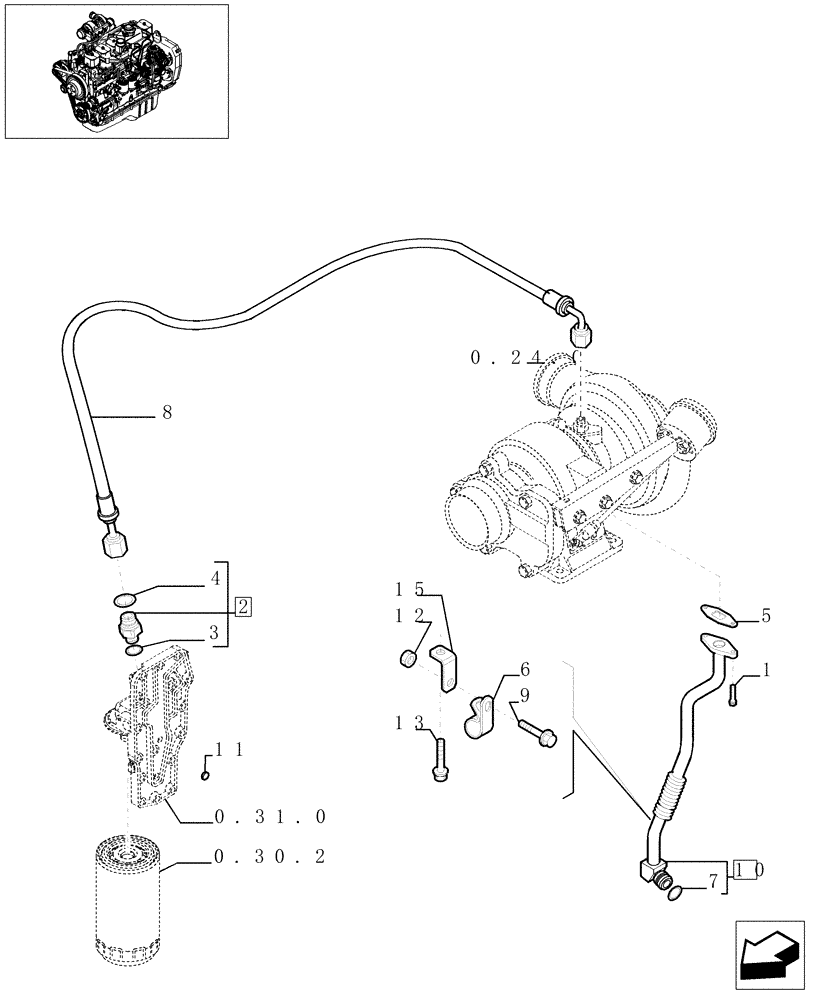

Запчасти Case IH F4GE0684E D600 (0.30.5[01]) - PIPING - ENGINE OIL (504019901)

1

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

2

4895107

HYD CONNECTOR,11/16"-16 x M12

- Assy

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

1шт.

6

4896893

CLAMP,20mm W

1шт.

7

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

8

4895171

HOSE

- ASSY

1шт.

9

16677734

BOLT,Hex Flg, M12 x 1.75 x 25mm

1шт.

10

2852919

RIGID TUBE

- ASSY

1шт.

11

4895089

PLUG,0.886" L

.886" OD

1шт.

12

2852627

FLANGE NUT,Hex, M12 x 1.75

12

1шт.

13

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

15

2852390

BRACKET

1шт.
