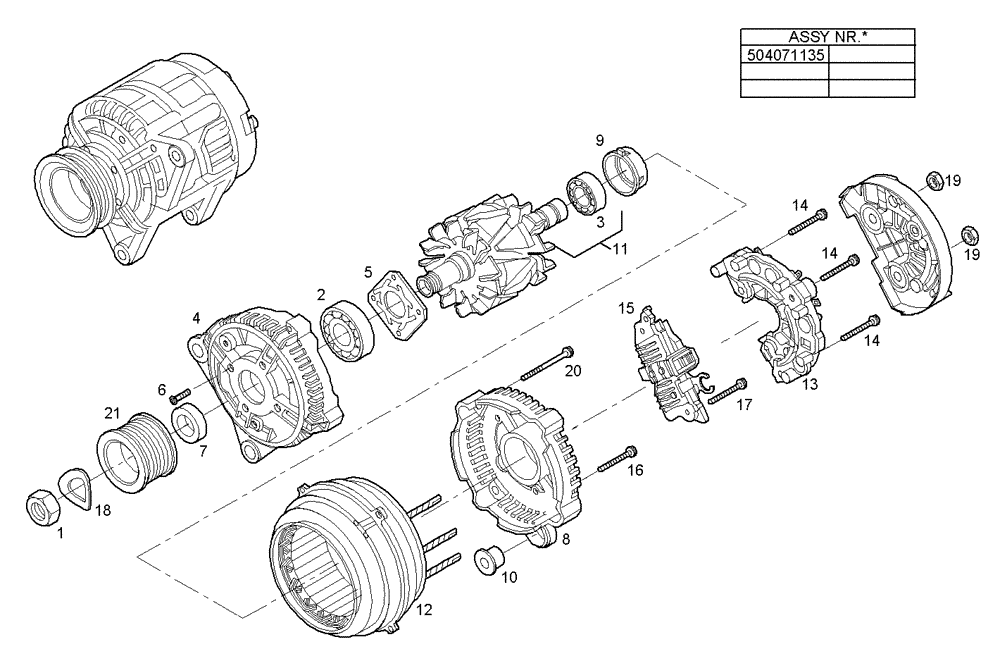

Запчасти Case IH F4GE0684C D600 (4030.059) - GENERATOR (COMPONENTS)

1

1113178

NUT

NUT, M16X1,5

1шт.

2

2991636

BEARING

ENGINE BEARINGS

1шт.

3

87458832

BEARING

ENGINE BEARINGS

1шт.

4

42537056

HOUSING

GENERATOR SUPPORT

1шт.

5

42537057

RETAINING PLATE

PLATE

1шт.

6

42537058

SCREW

C'SUNK SCREW

4шт.

7

42533805

SPACER

SPACING BAR

1шт.

8

42537670

HOUSING

GENERATOR SUPPORT

1шт.

9

42471431

CAP

BUSH

1шт.

10

42471432

SPACER

BUSH

2шт.

11

42471433

GENERATOR ROTOR, ASSY

1шт.

12

42471434

GENERATOR STATOR

1шт.

13

8094568

RECTIFIER BRIDGE

SPARE PART

1шт.

14

42537878

SCREW

SCREW

3шт.

15

42534878

BRUSH HOLDER

VOLTAGE REGULATOR

1шт.

16

42536305

SCREW

SCREW

1шт.

17

42536304

SCREW

SCREW

2шт.

18

42531183

WASHER

SPRING WASHER

1шт.

19

42533817

NUT

HEXAGON NUT

2шт.

20

42533819

SCREW

SCREW

4шт.

21

42535631

PULLEY

GENERATOR PULLEY

1шт.
